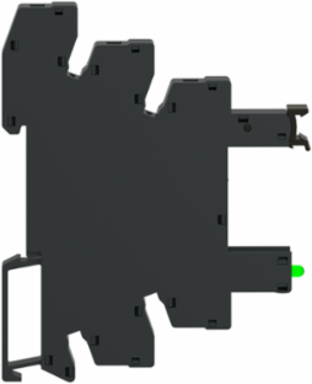

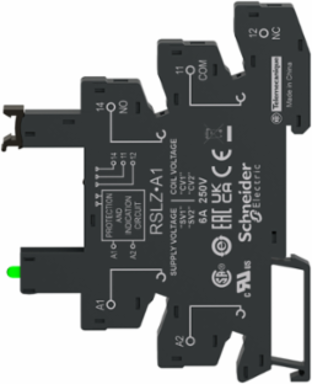

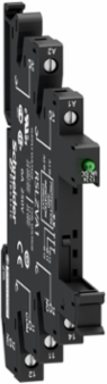

Schneider Electric RSLZVA3 Harmony Electromechanical Relay Socket, 110V AC/DC, IP20, 6 A
- MPN: RSLZVA3
- PPN: SCH-RSLZVA3
CAD
$12.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
"This Harmony RSL plug-in socket with LED indicator has a rated voltage of 110V AC/DC." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increases machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Italy, United States
Physical Attributes
- Cad Overall Depth
- 95 mm
- Cad Overall Width
- 6.2 mm
Cad Overall Height78.6 mm
Complementary Attributes
- Line Rated Current
- 6 A
Rated Operational Voltage Limits88...126.5 V
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- < 0.4 N.m M2.5, < 0.4 N.m M2.5< 0.4 N.m M2.5, < 0.4 N.m M2.5
- [Ue] Rated Operational Voltage
- < 300 V AC, < 300 V AC< 300 V AC, < 300 V AC
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0037416236, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0001753465, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI1405004EN
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1930
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- RSLZ
- Contacts Type And Composition
- 1 C/O
- Fixing Mode
- plastic compression spring (35 mm symmetrical DIN rail)
- Marking
- CE
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Harmony Electromechanical Relays
- Sale Per Indivisible Quantity
- 10
- Software Version
- EIME v5.7.0.4
- Switching Voltage
- 110 V AC/DC
- Pep Code
- ENVPEP1405004EN
- Pep Verification Date
- 2018-09-01
- Psr Version
- PSR-0005-ed2-EN-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity mix; AC; <lt/> 1kV; EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity mix; AC; <lt/> 1kV; EU-27
- [Ith] Conventional Free Air Thermal Current
- 6 A
- [Uimp] Rated Impulse Withstand Voltage
- 3.6 kV
- Package Weight(Lbs)
- 23.000 g
- Warranty (In Months)
- 18
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Certificate AgencyGOST, CSA
Connections - Terminalsscrew connectors, connector, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) flexible with cable endconnector, 1 x 0.2...1 x 2.5 mm² 24 AWG...14 AWG) solid without cable end
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.0074008289
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.9 kg CO2 eq., 0.9051542537
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Contact Terminal Arrangementseparate
Device Short NameRSLZ
Group Of ProductRSL_CON_110
Overvoltage CategoryIII
Product Or Component Typesocket
ReturnabilityYes
Shape Of Pinflat
Sustainable PackagingYes
Total Lifecycle Carbon Footprint0.9 kg CO2 eq.
Database Version2018-09
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control a circuit by a low-power signal with complete electrical isolation between control and controlled circuits, or where several circuits must be controlled by one signal during 20 years with a 100% use rate, in compliance with French standards.
Functional-unit Unitunité (unit)
Energy Model - Manufacturing [A1-a3]Energy model used: China
Energy Model - Use [B6]Electricity mix; AC; <lt/> 1kV; EU-27
Recyclability Potential In %70
[Uc] Control Circuit Voltage110 V
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536698000
Environment Attributes Main
- Ambient Air Temperature For Operation
- -40-55 °C, -40-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 0.9164720527
- Environmental Disclosure
- ENVPEP1405004EN
- Ip Degree Of Protection
- IP20 conforming to IEC 60529
- Packaging Without Single Use Plastic
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP1405004EN
- Pcr Version
- PCR-ed3-EN-2015 04 02
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-85 °C, -40-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Circularity ProfileENVEOLI1405004EN
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardYes
Product Compatibilityplug-in relay RSLplug-in relay RSL 1 C/O 60 V DC
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2018-09-01
Psr VersionPSR-0005-ed2-EN-2016 03 29
General Attributes
- Product Or Component Type
- socket
Range Of ProductHarmony Electromechanical Relays
ETIM
- ETIM 8
- EC001456
ETIM 9EC001456
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- basic element
