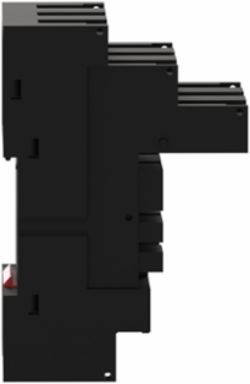

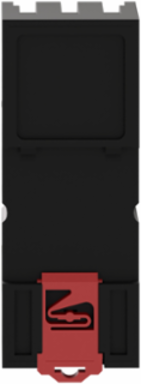

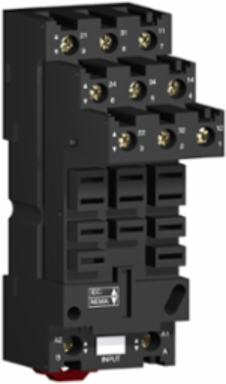

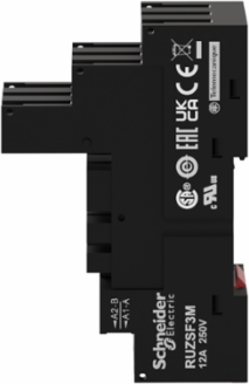

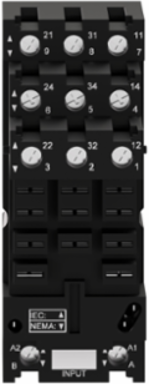

Schneider Electric RUZSF3M Harmony Electromechanical Relay Socket 250V AC, 12A, 3 C/O Contacts
- MPN: RUZSF3M
- PPN: SCH-RUZSF3M
CAD
$14.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
This Harmony RUM plug-in socket has a rated voltage of 250V AC with an output rating of 12A." "This plug-in relay socket is compatible with interface plug-in relay RUM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
- [Ith] Conventional Free Air Thermal Current
- 16 A
- Product Or Component Type
- socket
- Product Compatibility
- plug-in relay RUM 2 C/O || plug-in relay RUM 3 C/O
- [Ue] Rated Operational Voltage
- < 250 V
Range Of ProductHarmony Electromechanical Relays
Contacts Type And Composition3 C/O
Device Short NameRUZ
Complementary
- Tightening Torque
- < 1 N.m M3.5
- Pollution Degree
- 3
- Contact Terminal Arrangement
- separate
- Fixing Mode
- by screw (panel) || clip-on (35 mm symmetrical DIN rail)
- Sale Per Indivisible Quantity
- 10
- Overvoltage Category
- III
[Uimp] Rated Impulse Withstand Voltage4 kV
Shape Of Pinflat
Net Weight0.095 kg
Connections - Terminalsconnector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end || connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end || connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end || connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end
Width36 mm
Environment
- Product Certifications
- CSA || UL
- Standards
- IEC 61984
- Ip Degree Of Protection
- IP20 IEC 60529
Ambient Air Temperature For Operation-40-55 °C
MarkingCE
Ambient Air Temperature For Storage-40-85 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511021EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileN/A
