Schneider Electric SSM1D312BD Harmony Solid State Relay, 12A, DC Switching, 1-100V DC Output, DIN Rail Mount
- MPN: SSM1D312BD
- PPN: SCH-SSM1D312BD
CAD
$69.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

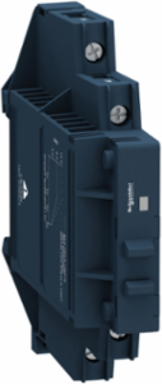

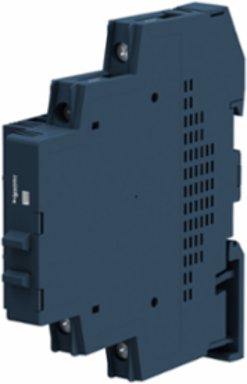

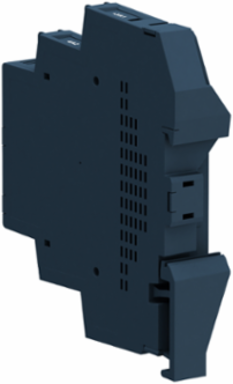

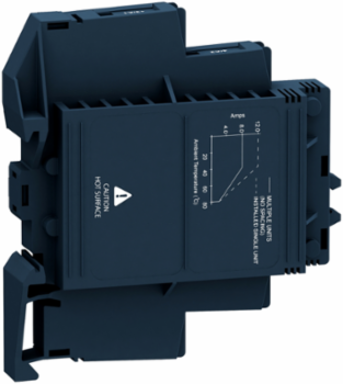

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 100V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico, United States |
|---|

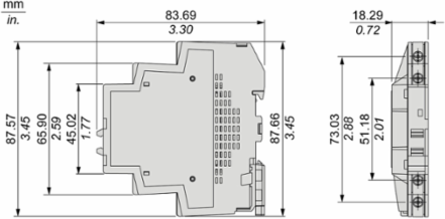

| Depth | 83.7 mm |
|---|
Complementary Attributes
| Maximum Voltage Drop | <0.5 V on-state, <0.5 V on-state<0.5 V on-state, <0.5 V on-state |
|---|---|
| Line Rated Current | 12 A |
| Maximum Switching Voltage | 1 V DC turn-off |
| Rated Current | 12 A |
| Absolute Maximum Voltage | 100 V |
|---|---|
| Maximum Leakage Current | 0.1 mA off-state |
| Minimum Switching Voltage | 4 V DC turn-on |
Important Information Attributes
| Persona Type Ids | BM9, EU, LC, OM, OM8, PB, SC, SI, VR |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Dielectric Strength | 4 kV DC for input/output, 4 kV DC for input or output to case |
| Control Circuit Voltage | 4...32 V |
| [Uc] Control Circuit Voltage | DC, 4...32 V |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Short Name | SSM |
| Insulation Resistance | 1000 MOhm at 500 V DC |
| Local Signalling | LED (green) for input status |
| Mounting Support | symmetrical DIN rail |
| Overvoltage Category | III |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | modular DIN rail relay |
| Resistance | 0.045 Ohm on-state |
| Returnability | Yes |
| Output Voltage 35 | 1...100 V DC |
| Height Nominal | 90.3 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536490080 |
| Persona Type Names | Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Tightening Torque | 0.5...0.8 N.m for input, 0.5...0.8 N.m for output |
| Certificate Agency | CSA, UL |
| Connections - Terminals | screw terminals 1 x 0.3...1 x 1.5 mm², 22 AWG...16 AWG) input, screw terminals 1 x 0.3...1 x 2.5 mm², 22 AWG...14 AWG) output, screw connectors |
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | N |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1307069EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1930 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Control Type | without test button |
| Flame Retardance | V0 conforming to UL 94 |
| Load Current | 0.0025-12 A |
| Marking | CE |
| Number Of Channels | 1 |
| Phase | 1 phase |
| Product Configuration Type | relay configuration |
| Range Of Product | Harmony Solid State Relays |
| Response Time | 1.7 ms (turn-on)0.3 ms (turn-off) |
| Sustainable Packaging | Yes |
| Pep Code | ENVPEP1307069EN |
| Width Nominal | 18 mm |
| Package Weight(Lbs) | 85.000 g |
| Warranty (In Months) | 18 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -30-80 °C, -30-80 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Circularity Profile | ENVEOLI1307069EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Ambient Air Temperature For Storage | -30-100 °C, -30-100 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP1307069EN |
| Ip Degree Of Protection | IP20 |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP1307069EN |
General Attributes
| Phase | 1 phase |
|---|---|
| Range Of Product | Harmony Solid State Relays |
| Product Or Component Type | modular DIN rail relay |
|---|
ETIM
| ETIM 8 | EC002055 |
|---|
| ETIM 9 | EC002055 |
|---|
Output Attributes
| Output Switching Mode | DC switching, DC switching |
|---|---|
| Output Voltage | 1...100 V DC |
| Solid State Output Type | DC switching, Mosfet output |
|---|
Surge Protection And Filtering Attributes
| Surge Current | 100 A 10 ms |
|---|
Input Attributes
| Input Current Limits | 8-11 mA |
|---|
Overview Attributes
| Device Presentation | complete product |
|---|
