Schneider Electric SSL1D03BDPR Harmony Solid State Relay, 3.5A, 16-30V DC, IP20, Spring Socket
Schneider Electric SSL1D03BDPR Harmony Solid State Relay, 3.5A, 16-30V DC, IP20, Spring Socket
- MPN: SSL1D03BDPR
- PPN: SCH-SSL1D03BDPR
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$39.48/ EA
Description

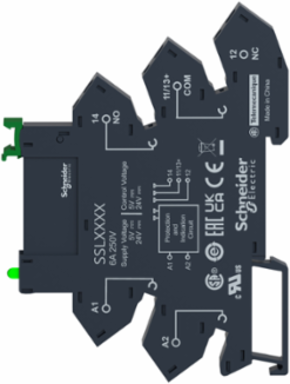

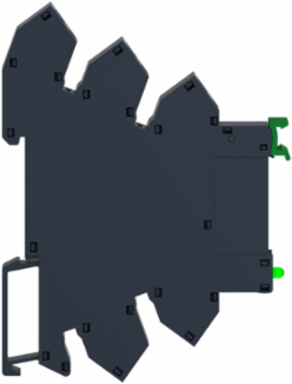

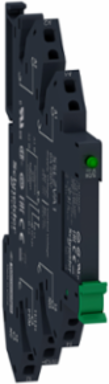

This slim interface solid state relay belongs to the Schneider Electric Harmony solid state relays range. This is a pre-assembled relay mounted on a socket that has a built-in reverse polarity protection circuit and a LED indicator. This is a 3.5A DC switching slim relay with 16Vdc to 30Vdc input and 1Vdc to 24Vdc output. This pre-assembled relay is a ready-to-go package saving assembly time. This 6mm relay has an IP67 water resistant encapsulation and a IP20 socket protection. The relay socket connection is by spring terminal type with a lever for locking or releasing the relay. This SSL weighs 0.033Kg. It is the ideal solution for packaging, HVAC, injection molding, textile machines, medical equipment, and heating control applications. It conforms to international standard and certifications like IEC, UL, CSA, CE, ROHS, GOST, EN, and REACH. It is sold in lots of 30. Thiss is a complete range of control input and load output configurations for both AC and DC switching applications. The pre-assembled range in SSL brings you easier selection, time-saving in installation and robustness.
Specifications
Environment
- Product Certifications
- UL || CSA || CE || UL 508 || CSA22.2 No. 14-10 || GOST
- Standards
- IEC 60950-1 || IEC 61000 || IEC 62314 || IEC 61984 || EN 61984
- Ip Degree Of Protection
- IP20
- Marking
- cURus || CSA || CE || EAC
- Ambient Air Temperature For Storage
- -20-85 °C
Ambient Air Temperature For Operation-20-70 °C
Pollution Degree2
Dielectric Strength2500 V input/output
Flame RetardanceV0 UL 94
Contractual warranty
- Warranty
- 18 Months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1405004EN
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI1405004EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach Free Of SvhcYes
China Rohs RegulationX
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Tightening Torque
- 10...40 N.m
- Height
- 104.6 mm
- Mounting Support
- spring socket
- Response Time
- 0.25 ms turn-on) || 0.12 ms turn-off)
- Load Current
- 0.001-3.5 A
- Minimum Switching Voltage
- 16 V DC turn-on
- Connections - Terminals
- flexible cable with cable end, 0.2...1.5 mm² AWG 24...AWG 16) || solid cable with cable end, 0.2...1.5 mm² AWG 24...AWG 16)
- Input Impedance
- 2.67 kOhm
- Solid State Output Type
- Mosfet output || DC switching
- [In] Rated Current
- 3.5 A
- Overvoltage Category
- III
[Uc] Control Circuit Voltage16...30 V DC
Output Voltage1...24 V DC
Maximum Voltage Drop<0.5 V on-state
Surge Current9 A 10 ms
Net Weight0.0285 kg
Maximum Leakage Current0.001 mA off-state
Absolute Maximum Voltage30 V DC
Maximum Switching Voltage5 V DC turn-off
Capacitance Unbalance1.5 pF input/output
Width6.2 mm
Depth79.5 mm
Specifications
- Range Of Product
- Harmony Solid State Relays
- Product Or Component Type
- solid state relay up to 10 A
- Device Short Name
- SSL
Output Switching ModeDC switching
Network Number Of Phases1 phase
