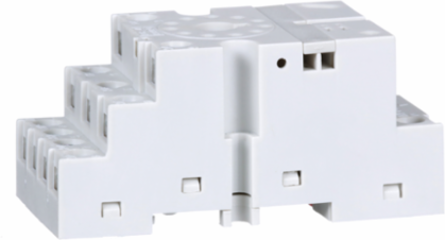

Square D 8501NR62 Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers
Square D 8501NR62 Plug in relay, Type N, relay socket, 11 tubular pin, double tier, for 8510KP relays and 9050JCK timers
- MPN: 8501NR62
- UPC: 785901583714
- PPN: SCH-8501NR62
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$29.31/ EA
Description
8501NR plug in relay sockets are designed for the proper wiring of 8501K plug in relays. This socket can be mount on 35mm DIN rail or can be mounted directly to a panel. The 8501KPR13 and 8501KPDR13 relays and 9050JCK timers will plug into this relay socket which is designed for 11 tubular pins. The socket terminals have pressure wire clamps for a good secure connection. To save panel space this socket has stacked terminals. 8501NR plug in relay sockets are UL component recognized and CSA certified.
Specifications
Offer Sustainability
- China Rohs Regulation
- X
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1511021EN
- Toxic Heavy Metal Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Reach Free Of SvhcYes
Complementary
- Height
- 81 mm
- Electrical Connection
- double tiered screw clamp terminals
- Width
- 38 mm
Mounting Supportpanel || DIN rail
Quantity Per Set1
Depth37 mm
Contractual warranty
- Warranty
- 18 months
Specifications
- [In] Rated Current
- 5 A 600 V AC || 16 A 300 V AC
