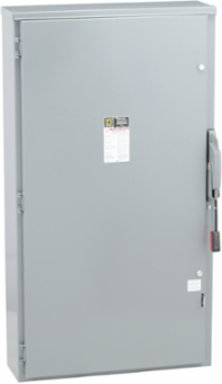

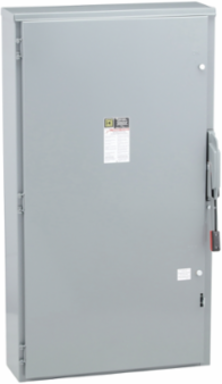

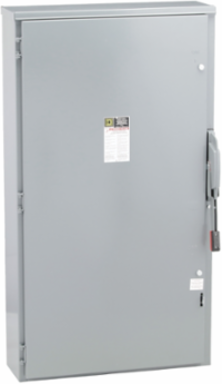

Square D HU366R Heavy Duty Safety Switch 600A 3-Pole 500hp NEMA 3R Galvannealed Steel
Square D HU366R Heavy Duty Safety Switch 600A 3-Pole 500hp NEMA 3R Galvannealed Steel
- MPN: HU366R
- UPC: 785901452164
- PPN: SCH-HU366R
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for robust performance in demanding environments, the heavy-duty safety switch from Schneider Electric safeguards your electrical systems with its NEMA 3R-rated galvannealed steel housing. Capable of handling 600 amps and designed for three-phase motors, this switch supports a maximum of 500 horsepower at 480 V AC, making it a reliable choice for industrial and commercial applications alike. With compatibility for copper or aluminum conductors ranging from AWG 3/0 to 500 kcmil, this switch not only meets strict operational demands but also contributes to a more sustainable environment through its CO2-equivalent metrics. Safety and durability are paramount, ensuring that your electrical setups remain secure and efficient under various conditions.
Features
- Heavy duty non fusible 600A, 600VAC/DC safety switch
- Type 3R enclosure for rainproof applications
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 600 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power HP
- 50 hp at 600 V DC, 200 hp at 240 V AC 50-60 Hz for 3 phase motors, 400 hp at 480 V AC 50-60 Hz for 3 phase motors, 500 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 185 kg CO2 eq., 185.01755676710303
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 389 kg CO2 eq., 388.9335567023143
- Local Data Status
- Publishable
- Manufacturer
- Schneider Electric
- Serviceability
- No
- Field Service Division
- PPIBS
- Legacy WEEE Scope
- In
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- ROHS EUR In Scope
- Yes
- ROHS EUR Full Compliance Status
- Compliant with Exemptions
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- AWG Gauge
- AWG 3/0...500 kcmil copper or aluminium
- Device Composition
- none
- Electrical Connection
- lugs
- Halogen Free Status
- Halogen free plastic parts product
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 998 kg CO2 eq.
- Wiring Configuration
- 3-wire
- Medium Desc
- Safety switch, heavy duty, non fusible, 600A, 3 wire, 3 pole, 500hp, 600VAC/DC, NEMA 3R
- Product Kit Identifier
- N
- Database Version
- 2024-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional Unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
- Energy Model Manufacturing A1 A3 2
- Electricity Mix; Low voltage; 2020; Mexico, MX
- Energy Model Use B6 2
- Electricity Mix; Low voltage; 2020; United States, US
- Global Commercial Status
- Commercialised
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A4192.8948348908759, 193 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.18421516908691113, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B61 231 kg CO2 eq., 1230.7965359690943
Local Publishable Date2025-12-16
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant with Exemptions
ROHS EUR Full Compliance Status IdCOMPLIANT_WITH_EXEMPTIONS
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Device Applicationheavy application
Disconnector Device Typenon-fusible disconnect
Energy Efficiency OptimizedFalse
Package Weight Lbs76.2 kg
Product Or Component TypeSingle Throw Safety Switch
Series Nameheavy duty
Tightening Torque375-375 lbf.in (AWG 3/0...500 kcmil)
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ue Rated Operational Voltage2600 V AC/DC
Stocking FlagN
Pep CodeENVPEP2503029EN
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional Unit Unitunit
Energy Model Installation A5 2No energy used
Energy Model End Of Life C1 C4 2Global, European and French datasets are used.
Ue Rated Operational Voltage5600 V AC/DC
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Nema Degree Of Protection
- NEMA 3R galvannealed steel
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
EU ROHS DirectiveCompliant By Exemption , Compliant with Exemptions
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1997.8266994984745
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Depth
- 10.13 in
