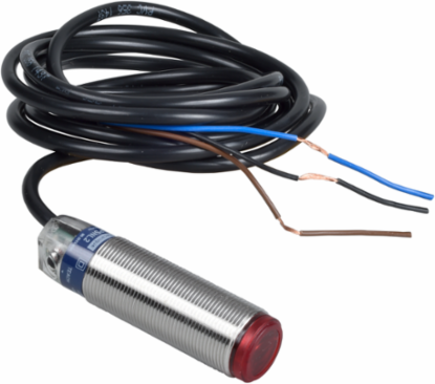

Telemecanique Sensors XUB0SPSNL2 Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 2 m
- MPN: XUB0SPSNL2
- PPN: TES-XUB0SPSNL2
- UNSPSC: 39121528
CAD
$372.67
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Photoelectric sensors XU, XUB, multi, Sn 0...20 m, 12...24 VDC, cable 2 m
Documentation & Downloads
Specifications
Key Specifications
| Electrical Connection | cable |
|---|---|
| Discrete Output Function | 1 NO or 1 NC programmable |
| Range Of Product | Telemecanique Photoelectric sensors XU |
| Emission | infrared diffuse || infrared diffuse with background suppression || infrared thru beam || red polarised reflex |
| Sensor Name | XUB |
| Wiring Technique | 3-wire |
| Detection System | multimode |
| Supply Circuit Type | DC |
| [Sn] Nominal Sensing Distance | 3-3 m polarised reflex need reflector XUZC50 || 20-20 m thru beam need a transmitter XUB0SKSNL2T || 0.12-0.12 m diffuse with background suppression || 0.3-0.3 m diffuse |
| Discrete Output Type | PNP |
|---|---|
| Type Of Output Signal | discrete |
| Cable Length | 2 m |
| Line Of Sight Type | axial |
| Material | stainless steel |
| Series Name | application food and beverage mutlimode |
| Sensor Design | cylindrical M18 |
| Electronic Sensor Type | photo-electric sensor |
Complementary
| Current Consumption | 35 mA no-load |
|---|---|
| Maximum Delay Response | 2 ms |
| Status Led | 1 LED green)output state || 1 LED red)supply on || 1 LED yellow)stability |
| Lens Material | PMMA |
| Length | 78 mm |
| Maximum Delay Recovery | 2 ms |
| Maximum Sensing Distance | 0.12 m diffuse with background suppression || 0.4 m diffuse || 30 m thru beam || 4.5 m polarised reflex |
| Switching Capacity In Ma | <= 100 mA overload and short-circuit protection) |
| Enclosure Material | stainless steel : 304 CU |
| [Us] Rated Supply Voltage | 12...24 V DC reverse polarity protection |
| Switching Frequency | <= 250 Hz |
|---|---|
| Diameter | 18 mm |
| Setting-Up | self-training |
| Maximum Voltage Drop | <1.5 V closed state) |
| Net Weight | 0.105 kg |
| Maximum Delay First Up | 200 ms |
| Supply Voltage Limits | 10-36 V DC |
| Wire Insulation Material | PvR |
| Output Type | solid state |
Environment
| Product Certifications | CSA || CE || UL |
|---|---|
| Vibration Resistance | 7 gn +/- 1.5 mm 10-55 Hz) IEC 60068-2-6 |
| Ambient Air Temperature For Storage | -40-70 °C |
| Ambient Air Temperature For Operation | -25-55 °C |
|---|---|
| Shock Resistance | 30 gn 11 ms) IEC 60068-2-27 |
| Ip Degree Of Protection | IP65 double insulation IEC 60529 || IP67 double insulation IEC 60529 || IP69K double insulation DIN 40050 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP111230EN |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Circularity Profile | ENVEOLI111208EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| California Proposition 65 | WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
