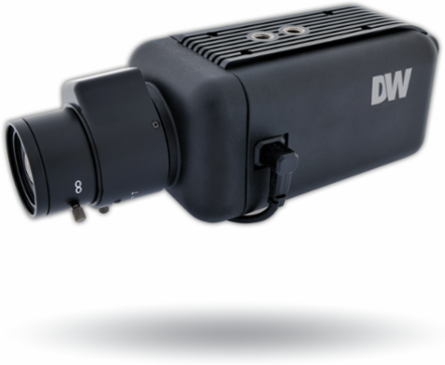

Universal HD Coax Box Camera 2.1MP/1080p with True WDR and IR Cut Filter
Digital Watchdog

Digital Watchdog DWC-C223W Universal HD Coax Box Camera 2.1MP/1080p with True WDR and IR Cut Filter

  • MPN: DWC-C223W
  • UPC: 813379019883
  • PPN: DWD-DWC-C223W

CAD

$363.93

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Experience exceptional clarity and performance with this advanced box camera from Digital Watchdog. Featuring a 2.1MP 1/3" CMOS image sensor, it delivers stunning 1080p resolution at real-time 30fps, ensuring every detail is captured with precision. Equipped with innovative technologies such as Smart DNRTM 3D digital noise reduction and True Wide Dynamic Range (WDR), this camera excels in various lighting conditions, from bright daylight to low-light environments, making it ideal for comprehensive surveillance needs. Designed for versatility, it supports multiple signal formats through Universal HD over CoaxTM technology, including HD-Analog, HD-TVI, and HD-CVI, while also providing programmable privacy zones for enhanced security. The camera's robust aluminum housing and a wide operating temperature range ensure durability and reliability, making it suitable for both indoor and outdoor applications. With features like auto white balance, backlight compensation, and an easy-to-use OSD menu, this box camera is a powerful solution for any surveillance system, backed by a 5-year warranty for peace of mind.

Features

  • Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
  • STAR-LIGHT™ Super Low Light Technology
  • 2.1MP 1/3" Image Sensor at Real-time 30fps
  • Compatible with C/CS Mount Lens
  • True Wide Dynamic Range (WDR)
  • OSD Control Via Coaxial (UTC)
  • Smart DNR™ 3D Digital Noise Reduction
  • True Day/Night Mechanical IR Cut Filter
  • De-Fog™ Extreme Weather Image Compensation
  • Highlight Masking Exposure (HME)
  • Auto-Sensing 24VAC/12VDC with Line Lock
  • Easy Icon Driven OSD Menu with Built-in Joystick
  • Programmable Privacy Zones
  • Auto Gain Control (AGC)
  • Backlight Compensation (BLC)
  • Dynamic Range Compressor (DRC) Reveals Low Light Detail
  • Auto White Balance (AWB)
  • NDAA compliant
  • 5 Year Warranty

Documentation & Downloads

Specifications

Key Specifications

Image sensor
2.1MP/1080p 1/3" CMOS
Scanning system
Progressive scan
Signal technology
Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
Resolution
1920 x 1080 (1080p)
S/N ratio
55dB
Alarm output
1 alarm output
Shutter mode
Auto, manual, FLC
Backlight
On, off
Wide dynamic range (WDR)
True WDR, off, on
Dynamic range compressor (DRC)
Off, low, middle, high
White balance
Auto / auto-ex / preset / manual
Mirror / flip
Yes
Motion detection
Yes
Sharpness
0 ~ 10
De-fog
On, off
Operating temperature
-4°F ~ 122°F (-20°C ~ 50°C)
Other certifications
FCC, CE, ROHS
Material
Aluminum box housing
Weight
0.7lbs (0.32kg)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
Minimum scene illumination0.02 lux (color)
Video outputHD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
Lens typeC/CS mount lens compatible
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off, x2 – x32
Wide dynamic range (WDR) dB100dB
Smart DNR™ 3D digital noise reductionOff, low, middle, high
Day / nightAuto, day (color), night (B/W)
Auto gain control0~10
Privacy zones16 programmable privacy zones
Gamma0.45 ~ 0.75
RS485 / UTP built-inPelco D / Pelco C
Operating humidity10–90% RH (non–condensing)
Power requirementDC12V/AC24V dual voltage
Dimensions4.71" x 2.31" x 2.44" (119.7 x 58.8 x 62 mm)
