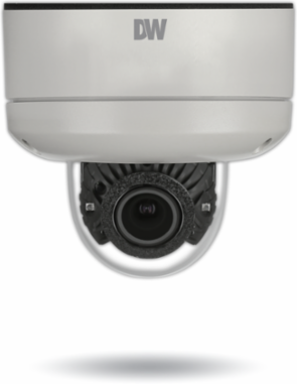

Digital Watchdog DWC-V4283WTIR Star-Light™ 2.1MP Vandal Dome Camera, 2.8-12mm P-Iris Lens, IP68
- MPN: DWC-V4283WTIR
- UPC: 813379019852
- PPN: DWD-DWC-V4283WTIR
CAD
$593.44
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The Star-Light™ UHDoC® vandal dome camera from Digital Watchdog is designed for robust surveillance in a variety of conditions, featuring a 2.1MP/1080p resolution for crystal-clear imaging. Equipped with a versatile 2.8 to 12mm motorized zoom p-iris lens, this camera offers auto-focus capabilities and exceptional low-light performance thanks to its STAR-LIGHT™ technology, ensuring reliable operation even in challenging environments. Its IP68 rating guarantees water and tamper resistance, while the IK10 impact rating provides added durability against physical damage. With advanced features such as Smart DNR™ digital noise reduction, true wide dynamic range, and programmable privacy zones, this camera is an ideal choice for comprehensive security solutions.
Features
- Universal HD over Coax™ Technology with HD-Analog, HD-TVI, HD-CVI and all Analog to 960H Signal Support
- STAR-LIGHT™ Super Low Light Technology
- 2.1MP 1/3" Image Sensor at Real-time 30fps
- 2.8~12mm Motorized Zoom Auto-Focus P-Iris Lens
- True Wide Dynamic Range (WDR)
- OSD Control Via Coaxial (UTC)
- Snapit™ Easy Installation Housing
- CleanView™ Hydrophobic Dome Coating Repels Water, Dust and Grease
- Cold Start -40°F (-40°C)
- 100' Smart IR™ with Intelligent Camera Sync.
- Smart DNR™ 3D Digital Noise Reduction
- True Day/Night Mechanical IR Cut Filter
- De-Fog™ Extreme Weather Image Compensation
- Highlight Masking Exposure (HME)
- Auto-Sensing 24VAC/12VDC with Line Lock
- Easy Icon Driven OSD Menu with Built-in Joystick
- Programmable Privacy Zones
- Auto Gain Control (AGC)
- Backlight Compensation (BLC)
- Dynamic Range Compressor (DRC) Reveals Low Light Detail
- Auto White Balance (AWB)
- UTP Built-In
- Junction Box Built-in
- RS-485 Built-in
- NDAA compliant
- IP68 Certified Water and Tamper Resistant
- IK-10 Impact Rated
- 5 Year Warranty
Documentation & Downloads
Specifications
Key Specifications
- Image sensor
- 2.1MP/1080p 1/3" CMOS
- Scanning system
- Progressive scan
- Signal technology
- Universal HD over Coax® technology with HD-Analog, HD-TVI, HD-CVI and all analog to 960H signal support
- Resolution
- 1920 x 1080 (1080p)
- Video output
- HD-Analog, HD-TVI, HD-CVI 2.1MP/1080p CVBS Analog up to 960H
- Focal length
- 2.8 ~ 12mm
- Field of view (FoV)
- 91 - 28°
- Shutter mode
- Auto, manual, FLC
- Backlight
- On, off
- Wide dynamic range (WDR)
- True WDR, off, on
- Dynamic range compressor (DRC)
- Off, low, middle, high
- White balance
- Auto / auto-ex / preset / manual
- Mirror / flip
- Yes
- Motion detection
- Yes
- Sharpness
- 0 ~ 10
- De-fog
- On, off
- Operating temperature
- -40°F ~ 122°F (-40°C ~ 50°C)
- IP rating
- IP68 Certified Water and Tamper Resistant
- Other certifications
- FCC, CE, ROHS
- Material
- Snapit™ aluminum vandal housing, polycarbonate dome
- Weight
- 2.05lbs (0.93kg)
Active pixels1944 (H) x 1092 (V)
Frequency60Hz / 50Hz
SynchronizationInternal
S/N ratio55dB
Alarm output1 alarm output
Lens typeMotorized zoom auto-focus p-iris lens
IR distance100ft range
Shutter speed1/30-1/30,000
Star-Light (sense-up)Off, x2 – x32
Wide dynamic range (WDR) dB100dB
Smart DNR™ 3D digital noise reductionOff, low, middle, high
Day / nightAuto, day (color), night (B/W)
Auto gain control0~10
Privacy zones16 programmable privacy zones
Gamma0.45 ~ 0.75
RS485 / UTP built-inPelco D / Pelco C
Operating humidity10–90% RH (non–condensing)
IK ratingIK10-rated impact resistant
Power requirementDC12V/AC24V dual voltage
Dimensions5.47" x 4.79" (139 x 121.8 mm)
