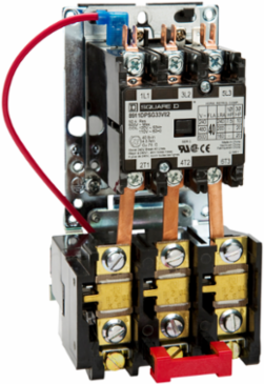

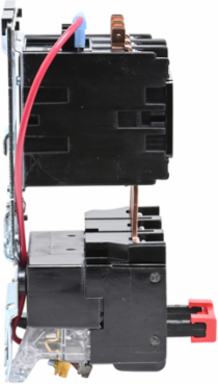

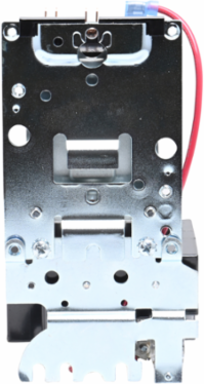

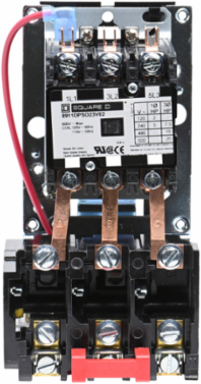

Square D 8911DPSO23V02 NEMA Starter, 25A, 20HP, 600V AC, 3 Phase, Open Type
- MPN: 8911DPSO23V02
- UPC: 785901116745
- PPN: SCH-8911DPSO23V02
CAD
$317.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
8911 definite purpose starters are inexpensive starters for applications with relatively low duty cycles. Typical applications include air compressors, agricultural equipment, pumps, and HVAC equipment. This three pole definite purpose starter has a full load rating of 25 amperes. This starter has ratings of 2 HP at 115 VAC and 5 HP at 230 VAC single phase. It has a 10 HP at 230 VAC, 15 HP at 460 VAC and 20 HP at 575 VAC three phase. The nonreplaceable coil is available with a variety of coil voltages. This device has a 110/120 VAC 50/60 Hz coil. The starter has straight through wiring. The melting alloy type overload relay uses Type B thermal units to sense over current conditions. This definite purpose contactor is an open device without an enclosure. Enclosure is 6.73 inches tall, 3.50 inches wide and 4.09 inches deep. Auxiliary contacts are available for these starters. 8911DPS definite purpose starters are UL component recognized.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico, United States
Complementary Attributes
- Locked Rotor Rated Current
- 150 A 230 V AC, 125 A 460 V AC, 100 A 575 V AC
- Line Rated Current
- 25 A
Maximum Horse Power Rating2-2 hp 115 V AC, 1 phase, 5-5 hp 230 V AC, 1 phase, 10-10 hp 230 V AC, 3 phase, 15-15 hp 460 V AC, 3 phase, 20-20 hp 575 V AC, 3 phase
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz, 120 V AC 60 Hz
- Local Publishable Date
- 2026-01-07
- Stocking Flag
- Y
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Number Of Thermal Units Required
- 3
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range Of Product
- DPS
- Sustainable Packaging
- Yes
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 1.021 kg
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Weee Product Category5
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2014
China Rohs In ScopeNo
Without Single Use PlasticYes
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Number Of Poles3P
Phase3 phase
Product Or Component TypeDefinite Purpose Starter
ReturnabilityNo
Thermal Overload Typemelting alloy
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
Take BackNo
Mercury FreeYes
Nema Degree Of Protectionnot rated (open device)
Packaging Without Single Use PlasticYes
General Attributes
- Phase
- 3 phase
- Range Of Product
- DPS
Product Or Component TypeDefinite Purpose Starter
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
