NEMA Motor Starter Type S, Size 00, 9A, 2HP at 460VAC, 3 Phase

Documentation & Downloads

Square D 8536SAG12V03 NEMA Motor Starter Type S, Size 00, 9A, 2HP at 460VAC, 3 Phase

MPN: 8536SAG12V03
UPC: 785901743491
PPN: SCH-8536SAG12V03

CAD

$779.51

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

Loading dialog...

Qty:

Loading add to cart quantity...

Looking to buy a large quantity?

To view product inventory

Spec sheet

Compare

Description

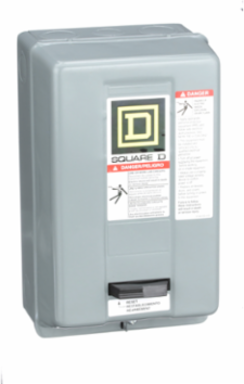

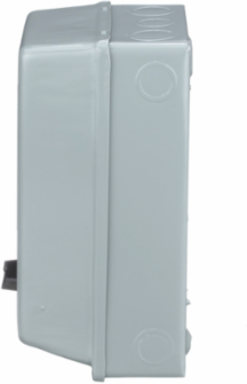

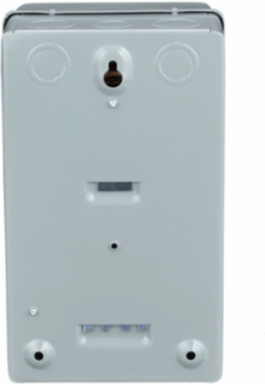

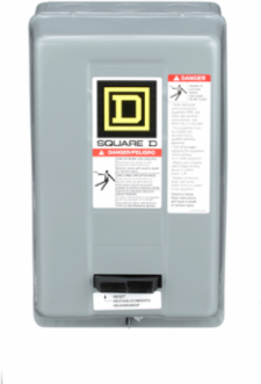

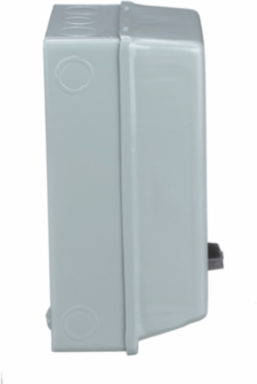

Type S NEMA motor starters are used for full voltage starting and stopping of AC squirrel cage motors. Type S motor starters have ratings up to 810 amperes. This 3 pole NEMA Size 00 non-reversing starter has an 9 ampere rating. This NEMA Size 00 motor starter has 3 phase ratings of 1.5 HP at 220 and 230 VAC and 2 HP at 460 and 575 VAC. This non-reversing NEMA motor starter has a melting alloy type overload relay that uses Type B thermal units to sense over current conditions. This NEMA starter has a 5 kA maximum SCCR (Short Circuit Current Rating) per UL508A when protected by an appropriate circuit breaker or fuse. Type S motor starters are available with replaceable coils in a wide variety of voltages. This starter has a 220/240 VAC 50/60 Hz operating coil wired for common control. A painted sheet steel NEMA 1 general purpose enclosure is used to protect this starter. Enclosure is 10.00 inches tall, 6.00 inches wide and 5.56 inches deep. A wide variety of accessories are available for Type S starters. Type S non-reversing NEMA motor starters are UL listed and CSA certified.

Documentation & Downloads

Specifications

Key Specifications

Country of Origin: Mexico

Depth: 141 mm

ComplianceTAA Compliant

Complementary Attributes

Rated Power In Hp: 1.5 HP 200 V AC, 1.5 HP 230 V AC, 2 HP 460 V AC, 2 HP 575 V AC

Line Rated Current: 9 A

Control Circuitcommon control circuit

Important Information Attributes

Persona Type Ids: EU, LC, OM, OM8, PB, SC

Market Segmentation Id: COMMERCIAL, INDUSTRIAL

Certificate Agency: UL Listed, CSA, NEMA

Carbon Footprint Of The Distribution Phase [A4]: 2.76366902949623, 3 kg CO2 eq.

Carbon Footprint Of The Installation Phase [A5]: 0.35978268052775314, 0.4 kg CO2 eq.

Carbon Footprint Of The Use Phase [B2, B3, B4, B6]: 86 kg CO2 eq., 85.99422016245423

Local Publishable Date: 2025-11-19

Stocking Flag: Y

Weee Scope: In

Scope Perimeter: Outside of Europe

Reach Full Compliance Status: Reference contains Substances of Very High Concern above the threshold

Reach Compliance Directive: Reference contains Substances of Very High Concern above the threshold

Rohs Eur Status: Compliant

China Rohs In Scope: No

With Recycled Cardboard: Yes

Product Contributes To Saved And Avoided Emissions: No

Tier: 1

Function Option: Standard

Control Circuit: common control circuit

Electrical Connection: screw clamp terminals

Local Signalling: without pilot light

Number Of Poles: 3P

Product Availability: Stock - Normally stocked in distribution facility

Range Of Product: S

Software Version: v6.2.4

Thermal Overload Type: melting alloy 3

Pep Code: ENVPEP2506062EN

Pep Verification Date: 2025-09-01

Psr Version: PSR-0005-ed3-2023 12 08

Data Source: extrapolated product

Functional-unit Quantity: 1

Reference Lifetime, In Y: 20

Energy Model - Installation [A5]: No energy used

Energy Model - End Of Life [C1-c4]: Global, European and French datasets are used.

Height Nominal: 254 mm

[Ue] Rated Operational Voltage: 600 V AC

Package Weight(Lbs): 3.329 kg

Warranty (In Months): 18

Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician

Market SegmentationCommercial, Industrial

[Uc] Control Circuit Voltage220 V AC 50 Hz, 240 V AC 60 Hz

Carbon Footprint Of The End-of-life Phase [C1 To C4]6 kg CO2 eq., 5.76041650987203

Carbon Footprint Of The Manufacturing Phase [A1 To A3]24 kg CO2 eq., 23.759640169475322

Local Data StatusPublishable

Return IndicatorY

Stock Policy1

Weee Product Category5

Eoli Availability DisplayNo need of specific recycling operations

Reach Full Compliance Status IdCONTAINS_SVHC

Rohs Eur In ScopeYes

Rohs Eur Full Compliance StatusCompliant

China Rohs Label1

Without Single Use PlasticYes

Tier Id1

Function Option IdSTANDARD

Product Kit IdentifierN

Control Typeno control units

Energy Efficiency OptimizedFalse

Motor Starter Typenon reversing

Phase3 phase

Product Or Component Typemotor starter

ReturnabilityYes

Sustainable PackagingYes

Total Lifecycle Carbon Footprint119 kg CO2 eq.

Database Version2024-01

Pcr VersionPEP-PCR-ed4-2021 09 06

Type Of Verification For The PepIndependent internal review

Functional-unit DescriptionWhen a product covered by this PSR includes additional functions, the functional unit defined in the PSR shall be used and shall be completed in order to take into account these additional functionsTo control, regulate, and protect the installation from overload and short circuits in a circuit with the rated voltage Ue and rated current In during the reference service life of the product of 20 years.

Functional-unit Unitunit

Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US

Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; United States, US

Recyclability Potential, In %73

Width Nominal152 mm

Nbr. Of Units In Pkg.1

Take-backNo
