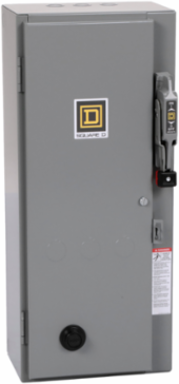

Square D 8538SCG14V02S NEMA Combination Starter, Size 1, 10HP, 30A Fusible Disconnect, 600VAC
Square D 8538SCG14V02S NEMA Combination Starter, Size 1, 10HP, 30A Fusible Disconnect, 600VAC
- MPN: 8538SCG14V02S
- UPC: 785901748359
- PPN: SCH-8538SCG14V02S
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2224.31/ EA
Description
Thermal units are intended to protect motors, controllers, and branch-circuit conductors against excessive heating due to prolonged motor over-currents up to and including locked rotor currents. Protection of the motor and the other branch circuit components from higher currents, due to short circuits or grounds, is a function of the branch circuit fuses or circuit breakers. Class 20 thermal units respond to overload current conditions according to trip curves. These thermal units will trip in 20 seconds or less on overload conditions. These thermal units have a one piece construction. The motor current passes through a small heater winding within these thermal units. Under overload conditions, the heat causes a special solder to melt allowing a ratchet wheel to spin free thus opening the control circuit contacts and opening the motor contacts.
Specifications
Environment
- Nema Degree Of Protection
- NEMA 1 painted sheet steel with external reset
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Eu Rohs DirectiveNot compliant
Complementary
- Disconnector Device Type
- fusible disconnect switch H, 30 A
- Thermal Overload Type
- melting alloy 3
- Auxiliary Contact Composition
- without
- Control Type
- no control units
- [Uc] Control Circuit Voltage
- 110 V AC 50 Hz || 120 V AC 60 Hz
- [Ue] Rated Operational Voltage
- 600 V AC
Motor Starter Typenon reversing
Local Signallingno indicator
Nema Size1
Motor Power Hp10-10 hp 460 V AC, 3 phases || 10-10 hp 575 V AC, 3 phases
Poles Description3P
Specifications
- Range Of Product
- S
- Product Or Component Type
- Combination Starter
Control Circuitseparate control circuit
