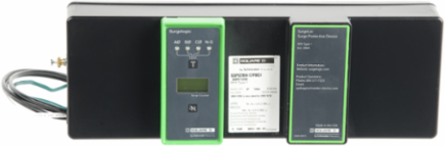

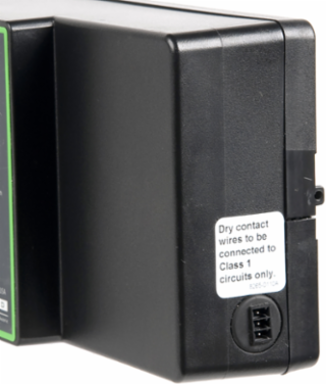

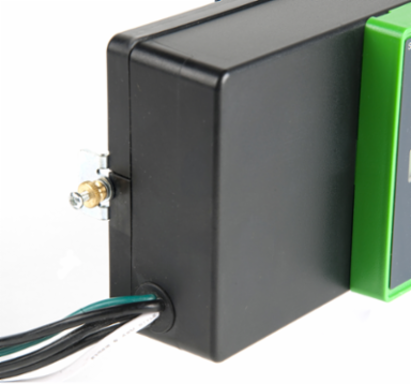

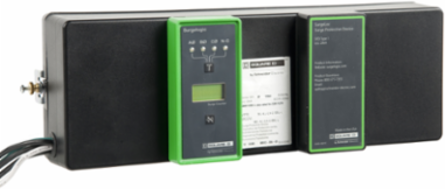

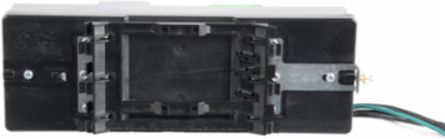

Square D SSP02SBA08D Surge protection device, Surgelogic, Surgeloc, 80kA, 208Y/120VAC, 3 phase, 4 wire, SPD type 1
- MPN: SSP02SBA08D
- UPC: 785901775249
- PPN: SCH-SSP02SBA08D
CAD
$2580.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Surge protection device, Surgelogic, Surgeloc, 80kA, 208Y/120VAC, 3 phase, 4 wire, SPD type 1
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Surgelogic
Product Or Component Typesurge protection device
Complementary
- Input Voltage
- 600 V N - G || 700 V L-N || 700 V L - G || 1000 V L - L
- Short-Circuit Protection
- 200 kA
- Surge Current
- 80 kA per phase
- Width
- 454.66 mm
- Type Of Packing
- box
- Net Weight
- 3.67 kg
Height111.76 mm
[Uc] Maximum Continuous Operating Voltage150 V
Wiring Configuration4-wire (3P + E)
Depth175.26 mm
Network Number Of Phases3 phases
[Ue] Rated Operational Voltage208Y/120 V AC
Environment
- Nema Degree Of Protection
- NEMA 1
Offer Sustainability
- Eu Rohs Directive
- Not compliant
