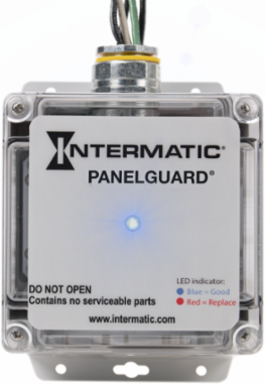

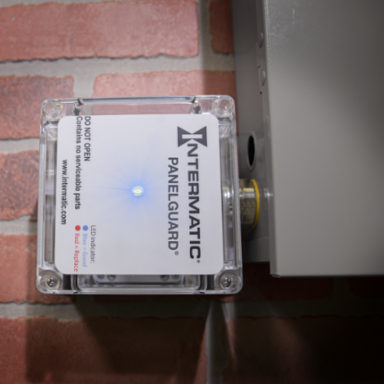

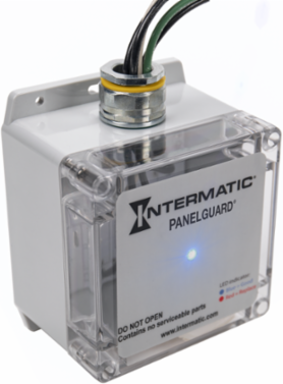

Intermatic L5F13Y2DG1 Surge Protective Device, 4-Mode, 277/480 VAC, 50kA, Type 1
- MPN: L5F13Y2DG1
- UPC: 078275151772
- PPN: INT-L5F13Y2DG1
- UNSPSC: 39121634
CAD
$757.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Intermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
Features
- Type 1 surge protection
- Optional audible alarm and dry relay contacts
- 4 Modes of protection
- NEMA 4X enclosure for indoor or outdoor installation
- Individually integrated disconnect TPMOV surge protection technology
- Blue LED protection status indicator, and red LED service indicator
- UL Listed to ANSI/UL 1449 5th Edition
Documentation & Downloads
Specifications
Key Specifications
- Warranty Period
- 5-Year limited
- Applications
- Distribution Panel;Service Entrance
- Height
- 6.46 in
- Width
- 4.81 in
- Country of Origin
- China
ColorGray
Marketing DescriptionIntermatic PANELGUARD® Surge Protective Devices are designed to react quickly and eliminate surges providing optimal protection to downstream equipment. PANELGUARD Industrial/Commercial-grade series are Parallel Connected Surge Protective Devices designed to protect all types of loads fed from individual disconnects, sub-panels, distribution panels and service entrance locations.
Weight0.5 lbs
Depth3.54 in
