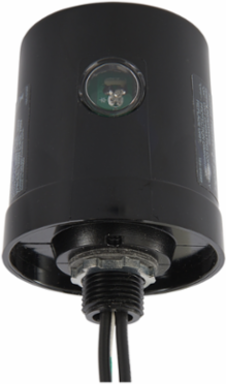

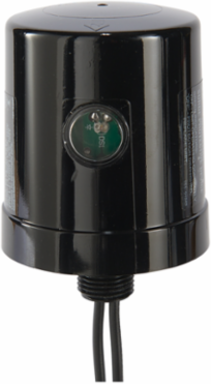

Intermatic AG6503L3 Surge Protective Device, 6-Mode, 347/600 VAC, Type 1 or Type 2
Intermatic AG6503L3 Surge Protective Device, 6-Mode, 347/600 VAC, Type 1 or Type 2
- MPN: AG6503L3
- UPC: 078275124769
- PPN: INT-AG6503L3
- UNSPSC: 39121634
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$214.33/ EA
Description
The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.
Features
- Six modes of protection
- TPMOV® surge protection technology
- Green LED protection indicator
- Type 4X watertight, plastic enclosure for outdoor installations
- UV-resistant polycarbonate housing
- 1⁄2" threaded nipple for 7⁄8" nominal conduit knockout
- 1-year product warranty
- UL Listed to ANSI/UL 1449 5th edition
- NA
Specifications
Specifications
- Input Voltage Rating Range(s)
- 347/600 VAC, 50/60 Hz
- Color
- Black
- Marketing Description
- The AG Series Surge Protective Devices (SPD) are designed for a variety of applications. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. A green LED indicator provides status of protection. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. Outdoor applications include irrigation equipment, farm equipment, pumps, lighting fixtures, traffic signaling devices, HVACR controls and motors. AG2401C3/AG48013/AG6503C3/AG6503L3 are UL Listed to ANSI/UL 1449, 3rd edition. AG2083C3/AG4803C3/AG2403C3 are CSA certified to ANSI/UL 1449, 3rd Edition.
- Length
- NA NA
- Width
- NA in
- Country of Origin
- Mexico
Warranty Period1-Year limited
ApplicationsDistribution Panel;Service Entrance
Height4.188 in
WeightNA lbs
DepthNA in
