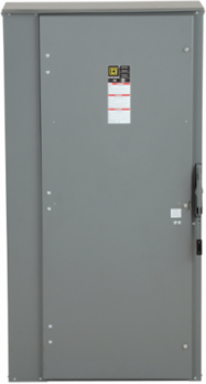

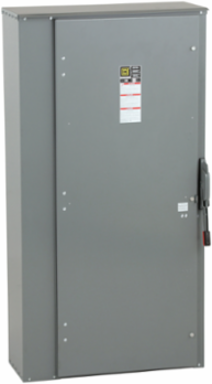

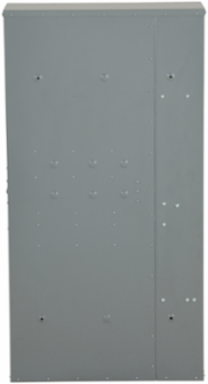

Square D HU368R Non-Fusible Safety Switch 600V 1200A 3-Phase, 69.13 Inch Height
- MPN: HU368R
- UPC: 785901259367
- PPN: SCH-HU368R
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Designed for robust performance, this non-fusible safety switch from Schneider Electric is engineered to handle heavy applications with ease. With a rated current of 1200A and a maximum operational voltage of 600V, it is built to meet the demands of industrial environments while ensuring safety and reliability. The switch features a durable NEMA 3R galvannealed steel enclosure, making it suitable for surface mounting and capable of withstanding various environmental conditions. Weighing in at 165.1 kg and standing at a height of 69.13 inches, this heavy-duty switch is not only compliant with stringent safety standards but also boasts a green premium status, reflecting its commitment to sustainability.
Documentation & Downloads
Specifications
Key Specifications
- Series Name
- heavy duty
- Nema Degree Of Protection
- NEMA 3R galvannealed steel
- Product Or Component Type
- Single Throw Safety Switch
- Network Number Of Phases
- 3 phases
- Number Of Poles
- 3
Disconnector Device Typenon-fusible disconnect
[In] Rated Current1200 A
Device Compositionnone
Device Applicationheavy application
[Ue] Rated Operational Voltage600 V AC/DC
Complementary
- Height
- 69.13 in
- Tightening Torque
- 375-375 lbf.in 85.01-380 mm² AWG 3/0...750 kcmil)
- Awg Gauge
- AWG 3/0...750 kcmil copper or aluminum
- Wiring Configuration
- 3-wire
- Net Weight
- 165.1 kg
Device Mountingsurface
Electrical Connectionlugs
Width36.62 in
Depth17.75 in
Environment
- Product Certifications
- UL listed file E2875
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1405016EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free plastic parts product
