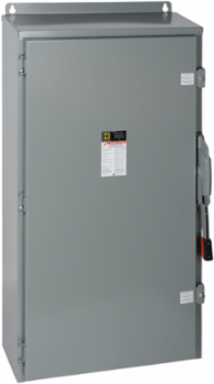

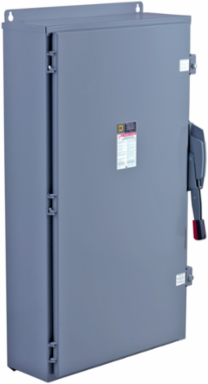

Square D HU365AWK Heavy Duty Safety Switch 400A 3-Pole 350HP 600V AC/DC NEMA 3R/12
Square D HU365AWK Heavy Duty Safety Switch 400A 3-Pole 350HP 600V AC/DC NEMA 3R/12
- MPN: HU365AWK
- UPC: 785901452096
- PPN: SCH-HU365AWK
- UNSPSC: 39122205
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$3406.62/ EA
Description
The Heavy Duty Safety Switch from Schneider Electric is engineered to ensure reliability and safety for various industrial and commercial applications. Rated at 400A with a robust 3-pole configuration, it accommodates motors up to 350HP, making it suitable for demanding environments. This switch operates at 600V AC/DC and is housed in a NEMA 3R/12 galvannealed steel enclosure, offering durability against various weather conditions while ensuring safety in power distribution.
Built with versatility in mind, it supports copper or aluminum conductors ranging from AWG 1/0 to 750 kcmil, making it adaptable to a range of installations. Whether you're a contractor, system integrator, or end user, this heavy-duty switch stands out for its capacity to handle significant electrical loads while providing essential protection in power management systems.
Features
- Heavy duty non fusible 400A, 600VAC/DC safety switch
- Type 12 without knockouts indoor dust and drip tight enclosure, meets type 3R requirements when drain plug removed
- Suitable for service entrance when equipped with neutral assembly or equipment grounding kit
- Quick make, quick break operating mechanism
- Dual cover interlock blocks opening cover if switch is on and switching on if cover is open
- Red and black handle indicates the ON (red) or OFF (black) condition of the switch
- UL listed
Specifications
Conformance Attributes
- Product Certifications
- UL listed file E2875
Complementary Attributes
- Line Rated Current
- 400 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power HP
- 50 hp at 600 V DC, 125 hp at 240 V AC 50-60 Hz for 3 phase motors, 250 hp at 480 V AC 50-60 Hz for 3 phase motors, 350 hp at 600 V AC 50-60 Hz for 3 phase motors, 50 hp at 250 V DC
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 193 kg CO2 eq., 192.73633384010333
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 405 kg CO2 eq., 405.15953802458023
- Local Data Status
- Publishable
- Device Type
- LV equipment - LV fuse - switch
- Traceability
- No
- Average Life Duration
- 15 year(s)
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- Y
- Function Option
- Standard
- Device Application
- heavy application
- Disconnector Device Type
- non-fusible disconnect
- Energy Efficiency Optimized
- False
- Package Weight Lbs
- 79.379 kg
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Tightening Torque
- 550-550 lbf.in (AWG 1/0...750 kcmil)
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ue Rated Operational Voltage2
- 600 V AC/DC
- Stocking Flag
- N
- Pep Code
- ENVPEP2503029EN
- Pep Verification Date
- 2025-03-01
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional Unit Unit
- unit
- Energy Model Installation A5 2
- No energy used
- Energy Model End Of Life C1 C4 2
- Global, European and French datasets are used.
- Ue Rated Operational Voltage5
- 600 V AC/DC
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A4200.94224539111337, 201 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.1919004712198152, 0.2 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6547 kg CO2 eq., 547.0206826529308
Local Publishable Date2025-12-16
ServiceabilityNo
Field Service DivisionPPIBS
Legacy WEEE ScopeIn
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
AWG GaugeAWG 1/0...750 kcmil copper or aluminium
Device Compositionnone
Electrical Connectionlugs
Halogen Free StatusHalogen free plastic parts product
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingYes
Total Lifecycle Carbon Footprint1 346 kg CO2 eq.
Wiring Configuration3-wire
Medium DescSafety switch, heavy duty, non fusible, 400A, 3 wire, 3 pole, 350HP, 600V AC/DC, NEMA 12
Product Kit IdentifierN
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional Unit DescriptionTurn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage U, and rated current In ensuring isolation characterised by a rated voltage Ui, and if applicable the specific specifications, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Energy Model Manufacturing A1 A3 2Electricity Mix; Low voltage; 2020; Mexico, MX
Energy Model Use B6 2Electricity Mix; Low voltage; 2020; United States, US
Global Commercial StatusCommercialised
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP2503029EN
- Nema Degree Of Protection
- NEMA 3R/12 galvannealed steel
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2503029EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint1346.0507003799476
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-03-01
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months

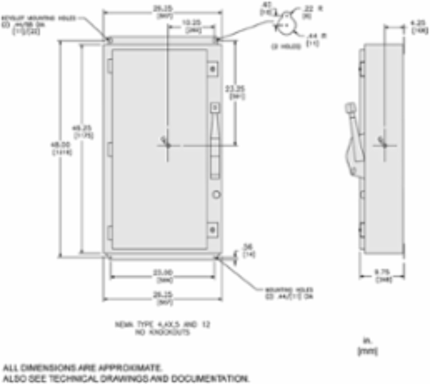

Specifications
- Depth
- 10.13 in
