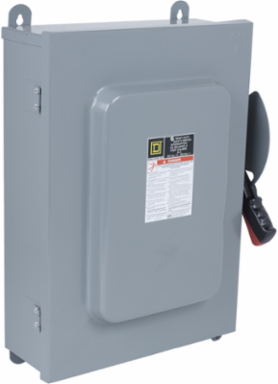

Square D HU662AWK Heavy Duty Non-Fusible Disconnect Switch 600V 60A 6 Poles NEMA 12
- MPN: HU662AWK
- UPC: 785901868361
- PPN: SCH-HU662AWK
CAD
$2400.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
These Square D heavy duty safety switches are designed to provide exceptional electrical protection in the most grueling conditions. They have been designed to have a significantly higher durability than a standard switch and have a durability three times greater than NEMA standard. Some of the things that make these switches desirable is there reliability, life durability, ease to install and safety features. Due to this, these heavy duty switches are the ideal for your electrical disconnect and protection for all your commercial and industrial needs.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
Depth6.8 in
Complementary Attributes
- Line Rated Current
- 60 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Awg Gauge
- AWG 14...AWG 3 copper, AWG 12...AWG 3 aluminium
- Tightening Torque
- 50-50 lbf.in (AWG 3), 45-45 lbf.in (AWG 6...AWG 4), 40-40 lbf.in 8.367-8.367 mm² (AWG 8), 50-50 lbf.in 2.06-5.261 mm² (AWG 14...AWG 10)
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 31 kg CO2 eq., 31.24839746099292
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 74 kg CO2 eq., 74.10672334438188
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Composition
- none
- Electrical Connection
- lugs
- Number Of Poles
- 6
- Product Or Component Type
- Single Throw Safety Switch
- Series Name
- heavy duty
- Sustainable Packaging
- Yes
- Wiring Configuration
- 6-wire
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
- Functional-unit Description
- Turn off all or part of an installation by separating the installation or part of the installation of all electrical energy or earth, for safety reasons with a rated voltage 240V and rated current 100A. This function is provided for 20 years.The product qualifies for the standards UL50E Type 3R, Standards UL98 & NEMA KS1.
- Functional-unit Unit
- Unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; US
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; US
- Recyclability Potential, In %
- 89
- Width Nominal
- 16.13 in
- [Ue] Rated Operational Voltage
- 600 V AC
- Package Weight(Lbs)
- 13.585 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator
Market SegmentationCommercial, Industrial
Motor Power Hp20 hp at 240 V AC 50-60 Hz for 3 phase motors, 50 hp at 480 V AC 50-60 Hz for 3 phase motors, 60 hp at 600 V AC 50-60 Hz for 3 phase motors
Carbon Footprint Of The Distribution Phase [A4]4.041880125989586, 4 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]1.4210970480540792, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2, B3, B4, B6]26 kg CO2 eq., 25.984664777026786
Local Publishable Date2025-11-18
Stocking FlagY
Device TypeLV equipment - LV fuse - switch
TraceabilityNo
Average Life Duration15 year(s)
Weee Product Category4
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1904
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Applicationheavy application
Disconnector Device Typenon-fusible disconnect
Energy Efficiency OptimizedFalse
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
ReturnabilityNo
Software Versionv5.9.4
Total Lifecycle Carbon Footprint137 kg CO2 eq.
Pep CodeENVPEP2305006EN
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; US
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; US
Height Nominal20.5 in
Certificate AgencyUL listed file E2875
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 136.80276275644525
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2305006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Reach Free ShvcYes
China Rohs RegulationX
Mercury FreeYes
Environmental DisclosureENVPEP2305006EN
Nema Degree Of ProtectionNEMA 3R/12 galvannealed steel
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-06-06
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- Single Throw Safety Switch
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
