Square D

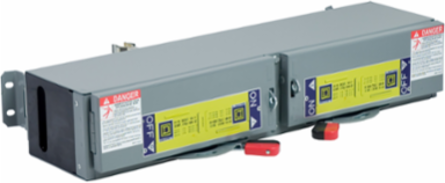

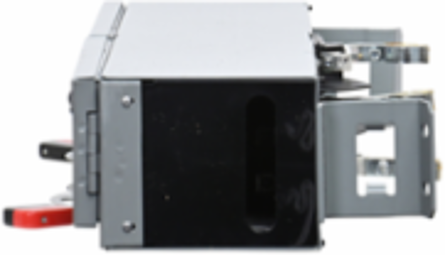

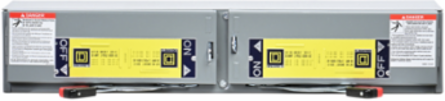

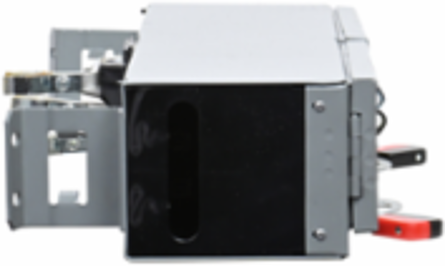

Square D QMJ361T Switch unit, QMJ fusible panelboards, 30A to 30A, 600VAC, 4.5 inch, 3 pole, 20HP @ 600VAC max

Switch unit, QMJ fusible panelboards, 30A to 30A, 600VAC, 4.5 inch, 3 pole, 20HP @ 600VAC max
  • MPN: QMJ361T
  • UPC: 785901209072
  • PPN: SCH-QMJ361T

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1590.22/ EA

Description

Square D brand QMJ fusible power distribution panelboards are for use on AC or DC systems. They are UL Listed under File E6294 and File E33139 and marked cULus.

Specifications

Environment

Product Certifications
CSA || UL

Offer Sustainability

China Rohs Regulation
Product out of China RoHS scope. Substance declaration for your information
Mercury Free
Yes
Eu Rohs Directive
Compliant with Exemptions
Rohs Exemption InformationYes
Pvc FreeYes
Reach RegulationReference contains Substances of Very High Concern above the threshold

Specifications

Fuse Type
R
Product Or Component Type
fuse-switch disconnector
[Ue] Rated Operational Voltage
600 V AC
[In] Rated Current30 A - 30 A 600 V AC
Number Of Poles3

Complementary

Height
114 mm
Number Of Modules
2
StandardsNEMA KS1
