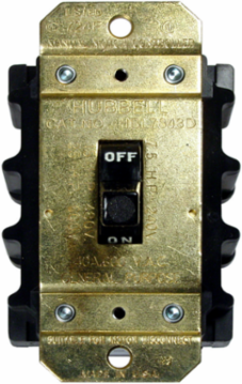

Hubbell Wiring Device-Kellems HBL7842D Motor Disconnect Switch 2-Pole 40A 600V Side Wired
- MPN: HBL7842D
- UPC: 783585202846
- PPN: HBL-HBL7842D
- UNSPSC: 39121521
CAD
$121.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Control, Motor Disconnect, 2-Pole, 40A 600V, Back and Side Wired, Short Toggle
Features
- Optional side guard for close wall applications
- Strong on/off action with quick-make slow break operation
- Thermoset body provides superior dielectric strength
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL7842D AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Country of Origin
- United States
- Width
- 2.400 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Standards - RoHS Compliance Status
- CM
- Number of Poles
- 2 Pole
- Standard
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Voltage Rating
- 600 VAC
- Weight
- 0.45 lb.
- Connectivity
- Side Wired
- Display Size
- Standard Sized Product
- Load Capacity
- Inductive
- Operating Cycles
- 10,000 Cycles Minimum
- Phase
- Single Phase
- Class Code
- A16
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL7842
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.750 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 15.130 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.200 in
- Pallet Weight
- 1337.600 lb.
- NAICS Code
- 3353146111
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
Current / Amperage Rating40 A
Horsepower - Maximum15
PerformanceElectrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
Current Rating40
Special FeaturesStandard Product
TypeSide Wire
Voltage Rating Description600 VAC
Amperage Rating40 A
Dielectric Strength2,200V AC minimum for 1 minute
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Poles2 Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wattage24000
Description - Invoice40A 600V 2P DISC SW
Harmonization Code8536509901
MSDS FlagNo
Sub Class CodeA16A240
ConstructionFabricated
SeriesStandard Toggle
BOX SIZE5.100x12.500x4.400 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585202846
Case - Total Units30 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585202845
Pallet Length48.000 in
Pallet Width40.000 in
