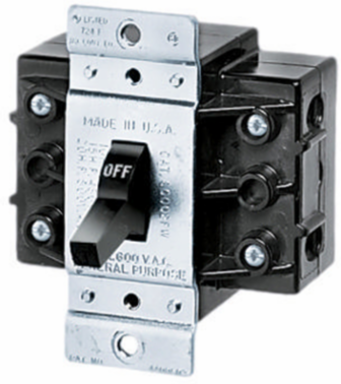

Hubbell Wiring Device-Kellems HBL7862FWD Motor Disconnect Switch, 2-Pole, 60A, 600VAC, Front Wired
- MPN: HBL7862FWD
- UPC: 783585202891
- PPN: HBL-HBL7862FWD
- UNSPSC: 39121521
CAD
$297.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Switches and Lighting Control, Motor Disconnect, 2-Pole, 60A 600V, Front Wired
Features
- Front and back wiring with steel screws and copper terminals
- Recessed wiring wells for finger safe environments
- Thermoset body withstands high temperatures
- Front Wired
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 3.178 in
- Industry Standard(s)
- CSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
- Current Rating
- 60
- Special Features
- Front Wired
- Type
- Front Wire
- Voltage Rating Description
- 600 VAC
- Engineering Drawing 1 Display Text
- HBL7862FWD AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Motor Disconnects
- Amperage Rating
- 60 A
- Dielectric Strength
- 2,200V AC minimum for 1 minute
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number Of Poles
- 2 Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Wattage
- 36000
- Description - Invoice
- DISCONNECT 60A 600V 2P SW FRONT WIRE
- Harmonization Code
- 8536509040
- MSDS Flag
- No
- Sub Class Code
- A16A240
- Material
- Stainless Steel
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating60 A
Horsepower - Maximum20
PerformanceElectrical - Dielectric Voltage - Min. 2,200V AC minimum for 1 minute;Electrical - Electrical Life - Min. 6,000 Cycles at rated switch load;Electrical - Max. Working Voltage - 600V AC RMS;Environmental - Flammability - UL94HB/VO;Environmental - Operating Temperature - Max. 75°C,Min. -40°C continuous w/o impact;Mechanical - Mechanical Life - Min. 10,000 minimum cycles;Mechanical - Switch Rating - 25 inch pounds;Mechanical - Terminal Accommodations - #10 AWG Max;Mechanical - Terminal Torque - 20 inch pounds;Mechanical - Wire Type - Solid and stranded copper wire only
Number of Poles2 Pole
StandardCSA-C22.2 No.14 Industrial Control File LR-46186;UL 508, Industrial Control File #E70402
Voltage Rating600 VAC
Weight0.7 lb.
General Literature Asset 1 Display TextCircuit-Lock® Rounded Sloped Top Motor Disconnects
General Literature Asset 3 Display TextPulp & Paper Solutions
ConnectivityPressure Terminal Screws
Display SizeStandard Sized Product
Load CapacityInductive
Operating Cycles10,000 Cycles Minimum
PhaseSingle Phase
Class CodeA16
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7862FW;HBL7862FW
Material - Mounting HardwareScrew Mounting
SeriesStandard Toggle
BOX SIZE4.900x19.600x7.200 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585202891
Each - Pack DescriptionEach
NAICS Code3353146111
