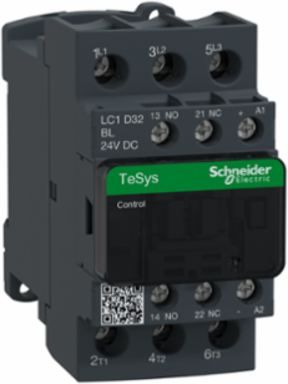

Schneider Electric LC1D32BL TeSys Deca Contactor, 3P, 32A, 24V DC Coil, 45mm Width
- MPN: LC1D32BL
- PPN: SCH-LC1D32BL
CAD
$365.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 32A/690V AC-3/3e (15kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Features
- This premium 3-pole TeSys D contactor features a highly sensitive 24V DC low-consumption coil (BL suffix designator) that draws only 2.4 Watts to close. This ultra-low power consumption allows it to be driven directly by solid-state PLC outputs without the need for an intermediate interposing relay, simplifying your control panel architecture and reducing hardware costs.
- Rated for 32 Amps under continuous AC-3 inductive loads (up to 440V AC), this contactor is engineered to safely control 3-phase motors up to 15 kW or 20 horsepower at 460V. It easily manages the high inrush currents typical of industrial conveyor lines, ventilation systems, and commercial water pumps without premature contact pitting.
- To streamline your control loop wiring, this contactor comes equipped with integrated 1 NO (Normally Open) and 1 NC (Normally Closed) instantaneous auxiliary contacts. These built-in contacts allow you to establish immediate run-status feedback or electrical interlocking logic without purchasing or snapping on additional auxiliary blocks.
- Fully certified by CSA and UL for the North American market, this contactor also carries CCC, and Marine certifications for global compliance. Additionally, it adheres to Green Premium standards, meaning it complies with strict RoHS and REACH environmental regulations while offering a transparent, eco-friendly Product Environmental Profile (PEP).
Documentation & Downloads
Specifications
Key Specifications
- [Uc] Control Circuit Voltage
- 24 V DC
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- [Ie] Rated Operational Current
- 32 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 50 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 32 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Device Short Name
- LC1D
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Contactor Applicationmotor control || resistive load
Utilisation CategoryAC-3 || AC-1 || AC-4 || AC-3e
Poles Description3P
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Power Dissipation Per Pole
- 2 W AC-3 || 5 W AC-1 || 2 W AC-3e
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Control Circuit Voltage Limits
- 0.1...0.3 Uc -40-70 °C drop-out DC || 0.8...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC
- Contact Compatibility
- M5
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Hold-In Power Consumption In W
- 2.4-2.4 W 20 °C
- Rated Breaking Capacity
- 550 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 63 A gG at <= 690 V coordination type 1 for power circuit || 63 A gG at <= 690 V coordination type 2 for power circuit
- Pole Contact Composition
- 3 NO
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Operating Time
- 77 ±15 % ms closing || 25 ±20 % ms opening
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm || control circuit 1.7 N.m screw clamp terminals Philips No 2 || power circuit 2.5 N.m screw clamp terminals flat Ø 6 mm || power circuit 2.5 N.m screw clamp terminals Philips No 2 || control circuit 1.7 N.m screw clamp terminals pozidriv No 2 || power circuit 2.5 N.m screw clamp terminals pozidriv No 2
- Mechanical Durability
- 30 Mcycles
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Overvoltage Category
- III
- Motor Power Kw
- 7.5 kW at 220...230 V AC 50/60 Hz (AC-3) || 15 kW at 380...400 V AC 50/60 Hz (AC-3) || 15 kW at 415...440 V AC 50/60 Hz (AC-3) || 18.5 kW at 500 V AC 50/60 Hz (AC-3) || 18.5 kW at 660...690 V AC 50/60 Hz (AC-3) || 7.5 kW at 400 V AC 50/60 Hz (AC-4) || 7.5 kW at 220...230 V AC 50/60 Hz (AC-3e) || 15 kW at 380...400 V AC 50/60 Hz (AC-3e) || 15 kW at 415...440 V AC 50/60 Hz (AC-3e) || 18.5 kW at 500 V AC 50/60 Hz (AC-3e) || 18.5 kW at 660...690 V AC 50/60 Hz (AC-3e)
- [Icw] Rated Short-Time Withstand Current
- 260 A 40 °C - 10 s for power circuit || 430 A 40 °C - 1 s for power circuit || 60 A 40 °C - 10 min for power circuit || 138 A 40 °C - 1 min for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
Minimum Switching Current5 mA for signalling circuit
Average Impedance2 mOhm - Ith 50 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit || 50 A (at 60 °C) for power circuit
Mounting Supportplate || rail
Control Circuit TypeDC low consumption
Pollution Degree3
Insulation Resistance> 10 MOhm for signalling circuit
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 550 A at 440 V for power circuit conforming to IEC 60947
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Connections - Terminalscontrol circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: flexible without cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end || control circuit: screw clamp terminals 1 1-4 mm² - cable stiffness: solid without cable end || control circuit: screw clamp terminals 2 1-4 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 1 2.5-10 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: flexible without cable end || power circuit: screw clamp terminals 1 1-10 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 2 1.5-6 mm² - cable stiffness: flexible with cable end || power circuit: screw clamp terminals 1 1.5-10 mm² - cable stiffness: solid without cable end || power circuit: screw clamp terminals 2 2.5-10 mm² - cable stiffness: solid without cable end
Time Constant40 ms
Minimum Switching Voltage17 V for signalling circuit
Signalling Circuit Frequency25...400 Hz
Electrical Durability1.65 Mcycles 32 A AC-3 <= 440 V || 1.4 Mcycles 50 A AC-1 <= 440 V || 1.65 Mcycles 32 A AC-3e <= 440 V
Inrush Power In W2.4-2.4 W 20 °C)
Compatibility CodeLC1D
Motor Power Hp2 hp at 115 V AC 50/60 Hz for 1 phase motors || 5 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 10 hp at 200/208 V AC 50/60 Hz for 3 phases motors || 10 hp at 230/240 V AC 50/60 Hz for 3 phases motors || 20 hp at 460/480 V AC 50/60 Hz for 3 phases motors || 25 hp at 575/600 V AC 50/60 Hz for 3 phases motors
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Protective Coverwith
Environment
- Product Certifications
- DNV || RINA || BV || GL || LROS (Lloyds register of shipping) || CCC || GOST || CSA || UL || UKCA
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Net Weight
- 0.535 kg
- Protective Treatment
- THIEC 60068-2-30
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor closed 15 Gn for 11 ms) || shocks contactor open 8 Gn for 11 ms)
- Fire Resistance
- 850 °C IEC 60695-2-1
- Depth
- 101 mm
Height85 mm
Climatic WithstandIACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
Flame RetardanceV1 UL 94
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude0...3000 m
Width45 mm
Permissible Ambient Air Temperature Around The Device-40-60 °C || 60-70 °C with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110229EN
- Pvc Free
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- ENVEOLI110229EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
Reach Free Of SvhcYes
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)
Eu Rohs DirectiveCompliant
