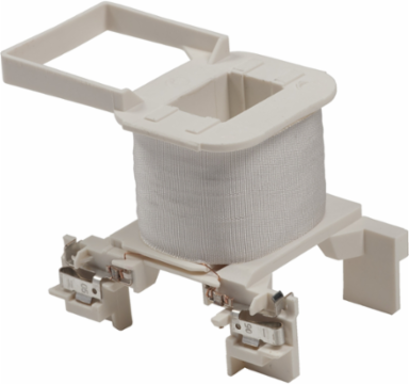

Schneider Electric LXD3LE7 TeSys Deca Contactor Coil 208V AC 60Hz, 0.07 kg, 160 VA Inrush Power
- MPN: LXD3LE7
- PPN: SCH-LXD3LE7
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
For industrial automation and control applications, the TeSys Deca contactor coil from Schneider Electric stands out with its reliable performance at 208V AC and 60Hz. Offering an inrush power of 160 VA, it is engineered to handle the demands of modern electrical systems effectively. Weighing just 0.07 kg, this coil combines a compact design with robust functionality, making it an essential component for starters and contactors in various applications. Its compatibility with the larger TeSys product range ensures seamless integration, enhancing operational efficiency in any setup.
Documentation & Downloads
Specifications
Additional
- Control Circuit Voltage
- 208 V AC 60 Hz
- Hold-in Power Consumption
- 15 VA 60 Hz cos phi 0.3 (at 20 C)
- Inductance
- 6.22 H
- Maximum Operating Rate
- 3600 cyc/h 60 C
- Heat Dissipation
- 4-5 W 60 Hz
- Coil Technology
- Without built-in suppressor module
- Product Compatibility
- LC1D40A...D80A, LC2D40A...D80A, LC1DT60A...DT80A
- Compliance
- RoHS, REACh, PVC free, Mercury free, Toxic heavy metal free
Inrush Power160 VA 60 Hz cos phi 0.75 (at 20 C)
Average Resistance105 Ohm 20 C
Mechanical Durability6 Mcycles
Ambient Air Temperature for Operation-5 to 60 C (-5 140 F)
Net Weight0.07 kg
Device Short NameLXD3
RangeTeSys
Warranty18 months
