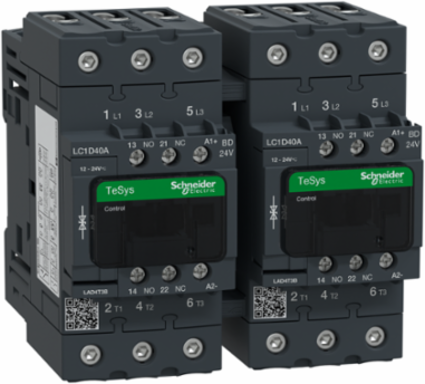

Schneider Electric LC2D40ABD TeSys Deca Reversing Contactor 40A 24V DC, 3P, IP20
- MPN: LC2D40ABD
- PPN: SCH-LC2D40ABD
CAD
$1002.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca reversing contactor, 3 poles (3NO), for motor control applications up to 40A/690V AC-3 (18.5kW@400V). Rated 40A AC-3 18.5kW@400V, it includes a 24V DC coil, 2NO+2NC aux contacts, a mechanical interlock. It provides 24V DC coils with transient suppressor module, 2NO+2NC built-in auxiliary contacts (NC mirror contacts), power connection by EverLink BTR screw connectors, control by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (119mm width), DIN-rail mounting or screw fixing. With pre-wired reversing power connections, mechanical interlock (without electrical interlocking). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine). Assembled with mechanical interlock and pre-wired reversing circuit. Clear separation between power and control circuits, easy front access to coil and auxiliary contacts connections. Equipped with a 24V DC coil for easy integration to all control systems. Provides 4 built-in auxiliary contacts 2NO + 2NC, NC contacts are mirror certified suitable to be included in the control of safety systems. High electrical durability, guaranteed for 1.6 million cycles at 40A AC-3 440V, for demanding motor switching applications. Robust design with high making and breaking capacities up to 20 In. Power connections by EverLink BTR screw terminals providing constant tightening pressure.
Features
- Featuring an advanced, high-efficiency 24V DC coil with an integrated bidirectional peak-limiting diode suppressor, this device requires minimal holding power. It can be safely driven directly by standard 500mA PLC transistor outputs, reducing component count, lowering control cabinet heat buildup, and protecting sensitive upstream automation electronics from voltage spikes.
- Rated for 40 Amps under AC-3/AC-3e conditions (up to 30 HP at 575V / 22 kW at 400V), this 3-pole assembly is engineered for demanding motor-starting applications. The high-performance copper alloy contacts offer extreme electrical durability, ensuring millions of reliable operations under full load for industrial pumps, fans, and material handling systems.
- Outfitted with 1NO (Normally Open) and 1NC (Normally Closed) auxiliary contacts per contactor, the assembly delivers seamless, real-time status signals back to your PLC or monitoring panels. The mirrors/linked contacts are highly reliable, enabling foolproof diagnostic tracking, safety interlocking, and system fault alerts without the need for add-on auxiliary blocks.
- Equipped with patented EverLinkTM lug technology, this contactor maintains consistent, long-term pressure on the power cables even as copper or aluminum wires cold-flow. This innovative design prevents localized terminal overheating and eliminates the need for routine torque maintenance, saving significant labor for field electricians and industrial maintenance crews.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France

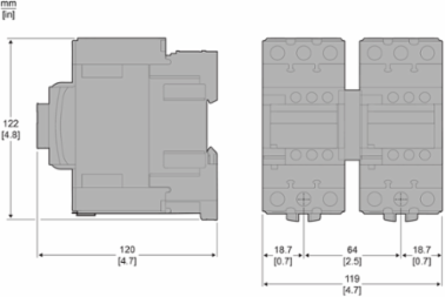

Depth120 mm
Complementary Attributes
- Control Circuit Type
- DC standard, DC standard
- Control Circuit Voltage Limits
- 0.1...0.3 Uc (-40-70 °C):drop-out DC0.75...1.25 Uc (-40-60 °C):operational DC1...1.25 Uc (60-70 °C):operational DC
- Maximum Motor Phase Current
- 40 A
- Minimum Switching Current
- 5 mA for signalling circuit
- Rated Breaking Capacity
- 800 A at 440 V for power circuit conforming to IEC 60947
Maximum Horse Power Rating5 hp at 230/240 V AC 60 Hz for 1 phase motors10 hp at 230/240 V AC 60 Hz for 3 phase motors30 hp at 575/600 V AC 60 Hz for 3 phase motors, 10 hp at 200/208 V AC 60 Hz for 3 phase motors3 hp at 115 V AC 60 Hz for 1 phase motors, 30 hp at 460/480 V AC 60 Hz for 3 phase motors
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1250 A DC for signalling circuit conforming to IEC 60947-5-1800 A at 440 V for power circuit conforming to IEC 60947
Maximum Operating Rate3600 cyc/h 60 °C
Minimum Switching Voltage17 V for signalling circuit
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-180 A gG at <= 690 V coordination type 1 for power circuit, 80 A gG at <= 690 V coordination type 2 for power circuit
- Electrical Durability
- 1.5 Mcycles 40 A AC-3 <= 440 V, 0.7 Mcycles 60 A AC-1 <= 440 V, 1.5 Mcycles 40 A AC-3e <= 440 V
- Mechanical Robustness
- vibrations contactor open2 Gn, 5...300 Hzvibrations contactor closed4 Gn, 5...300 Hzshocks contactor open10 Gn for 11 ms, shocks contactor closed15 Gn for 11 ms
- Mounting Support
- plate, rail
- Power Range
- 7-11 kW 200-240 V 3 phase15-25 kW 380-440 V 3 phase, 15-25 kW 480-500 V 3 phase
- Tightening Torque
- control circuit 1.7 N.m screw clamp terminals flat Ø 6 mm, control circuit 1.7 N.m screw clamp terminals Philips No 2power circuit 8 N.m EverLink BTR screw connectors 25-35 mm² hexagonal 4 mmpower circuit 5 N.m EverLink BTR screw connectors 1-25 mm² hexagonal 4 mm, control circuit 1.7 N.m screw clamp terminals pozidriv No 2, power circuit 2.5 N.m screw clamp terminals pozidriv No 2
- Control Circuit Voltage
- 24 V
- [Ie] Rated Operational Current
- 40 A (at <60 °C) at <= 440 V AC AC-3 for power circuit60 A (at <60 °C) at <= 440 V AC AC-1 for power circuit, 40 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Connections - Terminals
- control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable endcontrol circuit screw clamp terminals 2 1-4 mm²solidpower circuit EverLink BTR screw connectors 2 1-25 mm²flexible without cable endpower circuit EverLink BTR screw connectors 1 1-35 mm²flexible with cable endpower circuit EverLink BTR screw connectors 2 1-25 mm²flexible with cable end, power circuit EverLink BTR screw connectors 1 1-35 mm²solid, power circuit EverLink BTR screw connectors 2 1-25 mm²solid, control circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solidpower circuit EverLink BTR screw connectors 1 1-35 mm²flexible without cable end
- Carbon Footprint Of The Distribution Phase [A4]
- 0.9362601278262033, 0.9 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.1 kg CO2 eq., 0.1219558415180272
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 145 kg CO2 eq., 144.9748614273135
- Local Publishable Date
- 2026-06-27
- Stocking Flag
- Y
- Device Type
- LV equipment - LV contactor
- Traceability
- No
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Contact Compatibility
- M4
- Device Short Name
- LC2D
- Inrush Power In W
- 19-19 W 20 °C)
- Mechanical Durability
- 10 Mcycles
- Number Of Poles
- 3P
- Overvoltage Category
- III
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- reversing contactor
- Range Of Product
- TeSys Deca
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Software Version
- v6.2.4
- Time Constant
- 34 ms
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1503009EN
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; France, FR
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; France, FR
- Recyclability Potential In %
- 62
- Width Nominal
- 119 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C) for signalling circuit60 A (at 60 °C) for power circuit
- [Ue] Rated Operational Voltage
- power circuit <= 690 V AC 25...400 Hzpower circuit <= 300 V DC
- Hold-in Power Consumption In W
- 7.4-7.4 W 20 °C
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Insulation Resistance> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit> 10 MOhm for signalling circuit, > 10 MOhm for signalling circuit
Motor Power Kw11 kW at 220...230 V AC 50-60 Hz18.5 kW at 380...400 V AC 50-60 Hz22 kW at 415 V AC 50-60 Hz, 22 kW at 440 V AC 50-60 Hz, 22 kW at 500 V AC 50-60 Hz30 kW at 660...690 V AC 50-60 Hz
Power Dissipation Per Pole2.4 W AC-35.4 W AC-1, 2.4 W AC-3e
RangeTeSys, TeSys Deca
Utilisation CategoryAC-3, AC-1, AC-3e
Certificate AgencyUL, CSA, RINA, GOST, CCC, DNV, LROS (Lloyds register of shipping), GL, BV, UKCA
[Ui] Rated Insulation Voltagesignalling circuit 600 V CSA, signalling circuit 600 V ULpower circuit 690 V IEC 60947-4-1power circuit 600 V CSA, power circuit 600 V ULsignalling circuit 690 V IEC 60947-1
Non-overlap Time1.5 ms on de-energisation between NC and NO contact, 1.5 ms on energisation between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]2.8376788293740396, 3 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 9.987241659809072
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionPPIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1503009EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1926
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance1.5 mOhm - Ith 60 A 50 Hz for power circuit
Compatibility CodeLC2D
Contactor Coil Voltage24 V DC standard
Fire Resistance850 °C IEC 60695-2-1
Interlocking Typemechanical
Motor Starter Typereversing contactor
Operating Time16...24 ms opening42.5...57.5 ms closing
Pole Contact Composition3 NO
Product NameTeSys Deca
Protective TreatmentTH IEC 60068-2-30
ReturnabilityNo
Signalling Circuit Frequency25...400 Hz
Sustainable PackagingYes
Total Lifecycle Carbon Footprint159 kg CO2 eq.
Inf Motor Phase Current40 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh1611.84
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal122 mm
[Icw] Rated Short-time Withstand Current72 A 40 °C - 10 min for power circuit165 A 40 °C - 1 min for power circuit320 A 40 °C - 10 s for power circuit720 A 40 °C - 1 s for power circuit100 A - 1 s for signalling circuit120 A - 500 ms for signalling circuit140 A - 100 ms for signalling circuit
[Uc] Control Circuit Voltage24 V24 V DC
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Rated Thermal Current (Ith)60 A
Package Weight(Lbs)2.208 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Climatic Withstand
- IACS E10, IEC 60947-1 Annex Q category D
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 158.85799788584083
- Circularity Profile
- ENVEOLI1503009EN
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 0...9842.52 ft (0...3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-17
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Storage-60-80 °C, -60-80 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-40-60 °C-40-60 °C60-70 °C with derating
Environmental DisclosureENVPEP1503009EN
Ip Degree Of ProtectionIP20 front face IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1503009EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- reversing contactor
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000010
ETIM 9EC000010
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Overview Attributes
- Device Presentation
- preassembled with reversing power busbar
