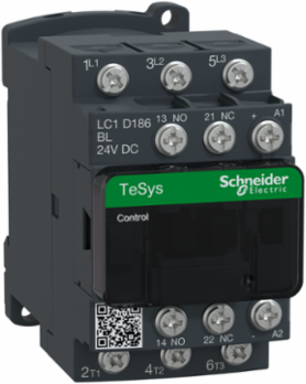

Schneider Electric LC1D186BL TeSys D Contactor 3P 18A 24V DC Coil, IP20, 45mm Width
Schneider Electric LC1D186BL TeSys D Contactor 3P 18A 24V DC Coil, IP20, 45mm Width
- MPN: LC1D186BL
- PPN: SCH-LC1D186BL
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$280.25/ EA
Description
TeSys D contactor, 3 poles (3NO), for motor control applications up to 18A/690V AC-3/3e (7.5kW@400V). It provides a low consumption 24V DC coil with transient suppressor module, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by ring-lugs screw terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- LROS (Lloyds register of shipping) || GOST || DNV || RINA || GL || UL || BV || CSA || CCC || UKCA
- Standards
- CSA C22.2 No 14 || EN 60947-4-1 || EN 60947-5-1 || IEC 60947-4-1 || IEC 60947-5-1 || UL 508 || IEC 60335-1
- Net Weight
- 0.49 kg
- Protective Treatment
- THIEC 60068-2-30
- Mechanical Robustness
- vibrations contactor open 2 Gn, 5...300 Hz) || vibrations contactor closed 4 Gn, 5...300 Hz) || shocks contactor open 10 Gn for 11 ms) || shocks contactor closed 15 Gn for 11 ms)
- Fire Resistance
- 850 °C IEC 60695-2-1
- Depth
- 95 mm
Height77 mm
Climatic WithstandIACS E10 exposure to damp heat || IEC 60947-1 Annex Q category D exposure to damp heat
Flame RetardanceV1 UL 94
Ip Degree Of ProtectionIP20 front face IEC 60529
Operating Altitude0...3000 m
Width45 mm
Permissible Ambient Air Temperature Around The Device-40-60 °C || 60-70 °C with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110230EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Circularity Profile
- ENVEOLI1102030EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Toxic Heavy Metal FreeYes
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation between NC and NO contact || 1.5 ms on energisation between NC and NO contact
- Power Dissipation Per Pole
- 2.5 W AC-1 || 0.8 W AC-3 || 0.8 W AC-3e
- Auxiliary Contact Composition
- 1 NO + 1 NC
- Control Circuit Voltage Limits
- 0.1...0.3 Uc -40-70 °C drop-out DC || 0.8...1.25 Uc -40-60 °C operational DC || 1...1.25 Uc 60-70 °C operational DC
- Contact Compatibility
- M5
- Safety Reliability Level
- B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1 || B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1
- Hold-In Power Consumption In W
- 2.4-2.4 W 20 °C
- Rated Breaking Capacity
- 300 A at 440 V for power circuit conforming to IEC 60947
- Associated Fuse Rating
- 10 A gG for signalling circuit conforming to IEC 60947-5-1 || 50 A gG at <= 690 V coordination type 1 for power circuit || 35 A gG at <= 690 V coordination type 2 for power circuit
- Pole Contact Composition
- 3 NO
- Coil Technology
- built-in bidirectional peak limiting diode suppressor
- Operating Time
- 77 ±15 % ms closing || 25 ±20 % ms opening
- Maximum Operating Rate
- 3600 cyc/h 60 °C
- Tightening Torque
- control circuit 1.7 N.m lugs-ring terminals flat Ø 6 mm M3.5 || control circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals flat Ø 8 mm M3.5 || power circuit 1.7 N.m lugs-ring terminals Philips No 2 M3.5 || control circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5 || power circuit 1.7 N.m lugs-ring terminals pozidriv No 2 M3.5
- Mechanical Durability
- 30 Mcycles
- Auxiliary Contacts Type
- mechanically linked 1 NO + 1 NC IEC 60947-5-1 || mirror contact 1 NC IEC 60947-4-1
- Overvoltage Category
- III
- Motor Power Kw
- 4 kW at 220...230 V AC 50/60 Hz (AC-3) || 7.5 kW at 380...400 V AC 50/60 Hz (AC-3) || 9 kW at 415...440 V AC 50/60 Hz (AC-3) || 10 kW at 500 V AC 50/60 Hz (AC-3) || 10 kW at 660...690 V AC 50/60 Hz (AC-3) || 4 kW at 400 V AC 50/60 Hz (AC-4) || 4 kW at 220...230 V AC 50/60 Hz (AC-3e) || 7.5 kW at 380...400 V AC 50/60 Hz (AC-3e) || 9 kW at 415...440 V AC 50/60 Hz (AC-3e) || 10 kW at 500 V AC 50/60 Hz (AC-3e) || 10 kW at 660...690 V AC 50/60 Hz (AC-3e)
- [Icw] Rated Short-Time Withstand Current
- 145 A 40 °C - 10 s for power circuit || 240 A 40 °C - 1 s for power circuit || 40 A 40 °C - 10 min for power circuit || 84 A 40 °C - 1 min for power circuit || 100 A - 1 s for signalling circuit || 120 A - 500 ms for signalling circuit || 140 A - 100 ms for signalling circuit
Minimum Switching Current5 mA for signalling circuit
Average Impedance2.5 mOhm - Ith 32 A 50 Hz for power circuit
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C) for signalling circuit || 32 A (at 60 °C) for power circuit
Mounting Supportrail || plate
Control Circuit TypeDC low consumption
Pollution Degree3
Insulation Resistance> 10 MOhm for signalling circuit
Irms Rated Making Capacity140 A AC for signalling circuit conforming to IEC 60947-5-1 || 250 A DC for signalling circuit conforming to IEC 60947-5-1 || 300 A at 440 V for power circuit conforming to IEC 60947
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947
Connections - Terminalscontrol circuit: lugs-ring terminals - external diameter: 8 mm || power circuit: lugs-ring terminals - external diameter: 8 mm
Time Constant40 ms
Minimum Switching Voltage17 V for signalling circuit
Signalling Circuit Frequency25...400 Hz
Electrical Durability1.65 Mcycles 18 A AC-3 <= 440 V || 1 Mcycles 32 A AC-1 <= 440 V || 1.65 Mcycles 18 A AC-3e <= 440 V
Inrush Power In W2.4-2.4 W 20 °C)
Compatibility CodeLC1D
Motor Power Hp1 hp at 115 V AC 50/60 Hz for 1 phase motors || 3 hp at 230/240 V AC 50/60 Hz for 1 phase motors || 5 hp at 200/208 V AC 50/60 Hz for 3 phases motors || 5 hp at 230/240 V AC 50/60 Hz for 3 phases motors || 10 hp at 460/480 V AC 50/60 Hz for 3 phases motors || 15 hp at 575/600 V AC 50/60 Hz for 3 phases motors
[Ui] Rated Insulation Voltagepower circuit 690 V IEC 60947-4-1 || power circuit 600 V CSA || power circuit 600 V UL || signalling circuit 690 V IEC 60947-1 || signalling circuit 600 V CSA || signalling circuit 600 V UL
Protective Coverwith
Specifications
- [Uc] Control Circuit Voltage
- 24 V DC
- Range Of Product
- TeSys Deca
- Product Or Component Type
- contactor
- [Ie] Rated Operational Current
- 18 A (at <60 °C) at <= 440 V AC AC-3 for power circuit || 32 A (at <60 °C) at <= 440 V AC AC-1 for power circuit || 18 A (at <60 °C) at <= 440 V AC AC-3e for power circuit
- Device Short Name
- LC1D
[Ue] Rated Operational Voltagepower circuit <= 690 V AC 25...400 Hz || power circuit <= 300 V DC
Contactor Applicationmotor control || resistive load
Utilisation CategoryAC-3 || AC-1 || AC-4 || AC-3e
Poles Description3P
