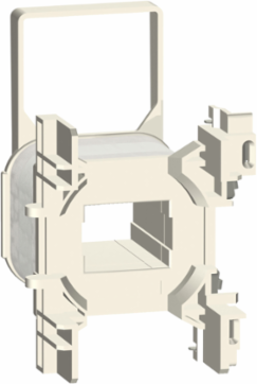

Schneider Electric LXD3R7 TeSys Deca Contactor Coil 440V AC 50/60Hz for 40-65A Contactors
- MPN: LXD3R7
- PPN: SCH-LXD3R7
CAD
$190.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
Engineered for exceptional performance in the realm of automation and control, Schneider Electric's contactor coil operates efficiently at 440V AC, tailored for 50/60Hz applications. Designed specifically for compatibility with 40-65A contactors, this coil ensures reliable operation and responsiveness, making it an essential component for diverse industrial settings. Its robust construction not only enhances durability but also optimizes control capabilities, thereby contributing to enhanced productivity and system reliability. With this contactor coil, you can expect seamless integration into existing systems, streamlining your operations with confidence.
Documentation & Downloads
Specifications
Additional
- Control Circuit Voltage
- 440 V AC 50/60 Hz
- Control Circuit Type
- AC 50/60 Hz
- Maximum Operating Rate
- 3600 cycles/hour at 60 B0C
- Hold-in Power Consumption
- 15 VA at 50/60 Hz, cos phi 0.3 (at 20 B0C)
- Product Compatibility
- LC1DT60A, LC1DT80A, LC1D40A...D65A contactors
- Inductance
- 40.1 H
- Heat Dissipation
- 4-5 W at 50/60 Hz
- Compliance
- REACH SVHC Free, RoHS, Toxic Heavy Metal Free, Mercury Free, PVC Free, China RoHS Compliant
- Eu RoHS Directive
- Pro-active compliance (out of EU RoHS scope)
- Range
- TeSys
- Device Short Name
- LXD3
Control Circuit Voltage LimitsDrop-out 0.3-0.6 Uc, Operational 0.8-1.1 Uc at 50/60 Hz, 0.85-1.1 Uc at 60 Hz (at <60 B0C)
Mechanical Durability6 Mcycles
Inrush Power160 VA at 50/60 Hz, cos phi 0.75 (at 20 B0C)
Ambient Operating Temperature-5 to 60 B0C (23 to 140 B0F)
Average Resistance682 Ohm at 20 B0C
Coil TechnologyWithout built-in suppressor module
Net Weight0.07 kg (0.15 lb)
China RoHS RegulationPro-active declaration (out of China RoHS scope)
Reach RegulationFree of Substances of Very High Concern above threshold
Warranty18 months
Product Or Component TypeContactor coil
