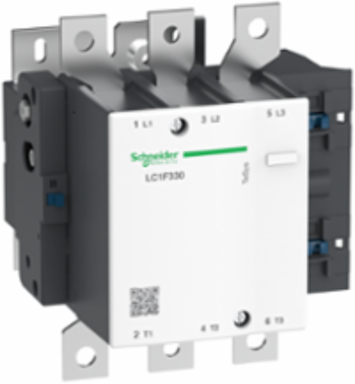

Schneider Electric LC1F330R7 TeSys F Contactor 3P 330 A AC-3 <= 440 V Coil 440 V AC
- MPN: LC1F330R7
- PPN: SCH-LC1F330R7
CAD
$3855.22
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
The TeSys F contactor from Schneider Electric is engineered for robust performance in controlling electrical circuits with precision. This model features three poles and is rated for a current of 330 A under AC-3 operation, making it well-suited for a variety of industrial applications. Operating at a coil voltage of 440 V AC, it ensures reliable switching in demanding environments. With its innovative design, the LC1F330R7 stands out for its durability and efficiency, providing a trusted solution for efficient power management in electrical systems.
Documentation & Downloads
Specifications
Additional
- Rated Operational Current
- 400 A AC-1, 330 A AC-3 (at <55 °C, <= 440 V)
- Motor Power
- 160 kW at 380-400 V AC, 180 kW at 415 V AC, 200 kW at 440 V AC, 200 kW at 500 V AC, 220 kW at 660-690 V AC, 160 kW at 1000 V AC (AC-3), 100 kW at 220-230 V AC (AC-3), 59 kW at 400 V AC (AC-4)
- Rated Short-Time Withstand Current
- 2650 A (10 s), 1800 A (30 s), 1300 A (1 min), 900 A (3 min), 750 A (10 min) at 40 °C
- Conventional Free Air Thermal Current
- 400 A (at 40 °C)
- Poles
- 3P
- Inrush Power
- 650 VA, 40-400 Hz
- Control Circuit Type
- AC 40-400 Hz
- Maximum Operating Rate
- 2400 cycles/hour at 55 °C
- Rated Insulation Voltage
- 1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
- Height
- 206 mm (8.11 in)
- Depth
- 219 mm (8.62 in)
- Operating Altitude
- 3000 m (9842 ft) without derating
- Material
- Contact composition 3 NO
- IP Degree of Protection
- IP20 front face with shrouds IEC 60529
- Ambient Air Temperature for Storage
- -60 to 80 °C (-76 to 176 °F)
- Mechanical Durability
- 10 million cycles
- Product Certifications
- CB, LROS, ABS, RINA, CCC, UL, RM, RoHS, BV, DNV, UKCA
- REACH Regulation
- Compliant with SVHC above threshold
- China RoHS Regulation
- Out of RoHS scope, substance declaration available
- Warranty
- 18 months
Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 460 V DC
Amperage330 A AC-3
Rated Breaking Capacity2640 A conforming to IEC 60947-4-1
Associated Fuse Rating400 A aM, 500 A gG at <= 440 V
Hold-In Power Consumption10 VA, 40-400 Hz
Control Circuit Voltage LimitsOperational 0.85-1.1 Uc, Drop-out 0.35-0.55 Uc (40-400 Hz)
Operating Time40-65 ms closing, 100-170 ms opening
Rated Impulse Withstand Voltage8 kV
Overvoltage CategoryIII
Width213 mm (8.39 in)
Net Weight8.6 kg (18.96 lb)
Tightening TorqueControl circuit 1.2 N·m, Power circuit 35 N·m
Protective TreatmentTH
Ambient Air Temperature for Operation-5 to 55 °C (23 to 131 °F)
Permissible Ambient Air Temperature Around Device-40 to 70 °C (-40 to 158 °F)
StandardsEN 60947-4-1, IEC 60947-1, JIS C8201-4-1
Sustainable Offer StatusGreen Premium
EU RoHS DirectiveCompliant with Exemptions
Mercury FreeYes
