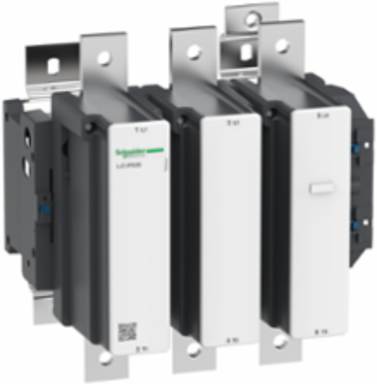

Contactor, TeSys F, 3P(3NO), AC-3 <=440V 630A, 400V AC coil
Schneider Electric

Schneider Electric LC1F630V7 Contactor, TeSys F, 3P(3NO), AC-3 <=440V 630A, 400V AC coil

  • MPN: LC1F630V7
  • PPN: SCH-LC1F630V7
Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Contactor, TeSys F, 3P(3NO), AC-3 <=440V 630A, 400V AC coil

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Czechia, United States
Depth255 mm

Complementary Attributes

Control Circuit Voltage Limits
operational 0.85...1.1 Uc 40...400 Hz 55 °C), drop-out 0.25...0.5 Uc 40...400 Hz 55 °C)
Ie Rated Operational Current
1000 A (at <40 °C) at <= 440 V AC AC-1, 630 A (at <55 °C) at <= 440 V AC AC-3
Ue Rated Operational Voltage
<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Control Circuit Type
AC 40...400 Hz
Maximum Operating Rate
1200 cyc/h 55 °C
Uimp Rated Impulse Withstand Voltage
8 kV
Icw Rated Short Time Withstand Current5050 A 40 °C - 10 s, 4400 A 40 °C - 30 s, 3400 A 40 °C - 1 min, 2200 A 40 °C - 3 min, 1600 A 40 °C - 10 min
Uc Control Circuit Voltage400 V, 400 V AC 40...400 Hz
Ui Rated Insulation Voltage1000 V IEC 60947-4-1, 1500 V VDE 0110 group C
Maximum Motor Phase Current630 A
Rated Breaking Capacity5040 A conforming to IEC 60947-4-1

Important Information Attributes

Persona Type Ids
EU, OM, OM8, PB
Market Segmentation Id
COMMERCIAL, INDUSTRIAL
Associated Fuse Rating
1000 A gG at <= 440 V, 630 A aM at <= 440 V
Motor Power Kw
335 kW at 380...400 V AC 50/60 Hz (AC-3), 375 kW at 415 V AC 50/60 Hz (AC-3), 400 kW at 440 V AC 50/60 Hz (AC-3), 400 kW at 500 V AC 50/60 Hz (AC-3), 450 kW at 660...690 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3), 200 kW at 220...230 V AC 50/60 Hz (AC-3), 100 kW at 400 V AC 50/60 Hz (AC-4)
Power Dissipation Per Pole
120 W AC-1, 48 W AC-3
Tightening Torque
control circuit 1.2 N.m, power circuit 58 N.m
Connections Terminals
control circuit screw clamp terminals 2 1-2.5 mm²flexible with cable end, control circuit screw clamp terminals 2 1-4 mm²solid without cable endcontrol circuit screw clamp terminals 1 1-4 mm²flexible without cable end, control circuit screw clamp terminals 2 1-4 mm²flexible without cable end, control circuit screw clamp terminals 1 1-4 mm²flexible with cable end, control circuit screw clamp terminals 1 1-4 mm²solid without cable end, power circuit bar 2 60 x 5 mm, power circuit bolted connection
Ie Rated Operational Current
1000 A (at <40 °C) at <= 440 V AC AC-1, 630 A (at <55 °C) at <= 440 V AC AC-3
Carbon Footprint Of The Distribution Phase A4
6.172041606, 6 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5
0 kg CO2 eq., 0.049597841
Carbon Footprint Of The Use Phase B2 B3 B4 B6
4 282 kg CO2 eq., 4282.299183
Local Data Status
Publishable
Return Indicator
N
Stock Policy
2
Serviceability
No
Field Service Division
PPIBS
Weee Scope
In
Scope Perimeter
At least in Europe
End Of Life Doc Ref
ENVEOLI1505009EN
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2542
China Rohs In Scope
No
Without Single Use Plastic
No
Tier Id
1
Function Option Id
STANDARD
Product Kit Identifier
N
Compatibility Code
LC1F
Device Short Name
LC1F
Heat Dissipation
20-20 W
Inrush Power In Va
1650-1650 VA, 40...400 Hz 0.9 20 °C)
Motor Starter Type
direct on-line contactor
Number Of Poles
3P
Pole Contact Composition
3 NO
Product Or Component Type
contactor
Range
TeSys
Returnability
No
Sustainable Packaging
No
Weee Label
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Warranty In Months
18
Database Version
2023-02
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Functional-unit Description
Establish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unit
unit
Energy Consumption On Product Lifetime, In Kwh
4905.6
Energy Model - Installation [A5]
Electricity Mix; Low voltage; 2018; China, CN
Energy Model - End Of Life [C1-c4]
Electricity Mix; Low voltage; 2018; China, CN
Height Nominal
304 mm
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
69251.8904
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationmotor control, resistive load
Operating Time40...80 ms closing, 100...200 ms opening
Power Range250-500 kW 380-440 V 3 phase, 110-220 kW 200-240 V 3 phase, 250-500 kW 480-500 V 3 phase
Utilisation CategoryAC-3, AC-1, AC-4
Icw Rated Short Time Withstand Current5050 A 40 °C - 10 s, 4400 A 40 °C - 30 s, 3400 A 40 °C - 1 min, 2200 A 40 °C - 3 min, 1600 A 40 °C - 10 min
Ith Conventional Free Air Thermal Current1000 A (at 40 °C), 1250 A
Carbon Footprint Of The End Of Life Phase C1 To C435.57960214, 36 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A3113 kg CO2 eq., 113.121866
Certificate AgencyDNV, BV, RINA, LROS (Lloyds register of shipping), CSA, ABS, UL, RMRoS, CB, UKCA
Local Publishable Date2025-07-09
Stocking FlagY
Device TypeLV equipment - LV contactor
TraceabilityNo
Average Life Duration20 year(s)
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Average Impedance0.12 mOhm - Ith 1000 A 50 Hz
Contactor Coil Voltage400 V AC standard
Energy Efficiency OptimizedFalse
Hold In Power Consumption In Va22-22 VA, 40...400 Hz 0.9 20 °C)
Mechanical Durability5 Mcycles
Mounting Supportplate
Overvoltage CategoryIII
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys F
Software Versionv6.1
Total Lifecycle Carbon Footprint4 437 kg CO2 eq.
Rated Thermal Current Ith1000 A
Pep CodeENVPEP1012011EN
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Manufacturing [A1-a3]China, CN
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; China, CN
Recyclability Potential, In %95
Width Nominal309 mm
Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]69251.8904

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Ambient Air Temperature For Storage
-60-80 °C, -60-80 °C
Take Back
No
Mercury Free
Yes
Circularity Profile
ENVEOLI1505009EN
Eu Rohs Directive
Compliant By Exemption
Packaging Made With Recycled Cardboard
Yes
Permissible Ambient Air Temperature Around The Device
-40-70 °C-40-70 °C
Pep Code
ENVPEP1012011EN
Pcr Version
PCR-4-ed4-EN-2021 09 06
Type Of Verification For The Pep
Independent internal review
Ambient Air Temperature For Operation-5-55 °C, -5-55 °C
Ip Degree Of ProtectionIP20 front face with shrouds IEC 60529, IP20 front face with shrouds VDE 0106
Recycled Metal Content At Cr Level0 %
Carbon Footprint4437.222291
Environmental DisclosureENVPEP1012011EN
Operating Altitude9842.52 ft (3000 m) without derating
Packaging Without Single Use PlasticNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2024-05-01
Psr VersionPSR-0005-ed3-EN-2023 06 06

General Attributes

Product Or Component Type
contactor
Range Of ProductTeSys F

ETIM

ETIM 8
EC000066
ETIM 9EC000066

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
