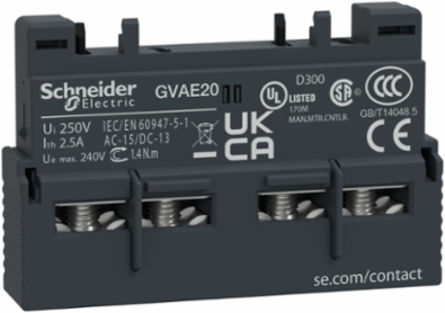

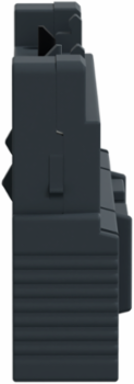

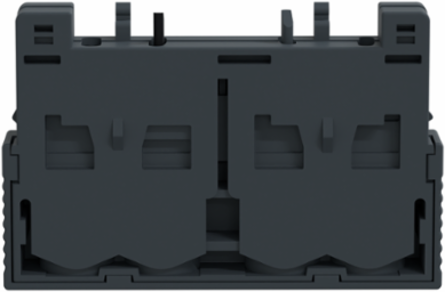

Schneider Electric GVAE20 TeSys Deca Auxiliary Contact Block 2NO for GV2, Front Mounting
- MPN: GVAE20
- PPN: SCH-GVAE20
CAD
$58.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by screw clamp terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Features
- Designed for high-density spacing, the GVAE20 snaps directly onto the front face of TeSys GV2 and GV3 manual motor starters. This tool-free, front-mounting architecture utilizes zero additional DIN rail or horizontal enclosure space, allowing industrial panel builders to scale up system monitoring capabilities within an ultra-compact footprint.
- Featuring two Normally Open (NO) instantaneous contacts, this block closes its auxiliary circuits the moment the main motor starter is engaged. This dual-signal layout enables automation engineers to route one channel directly to a PLC input for automated system status tracking, while using the second channel to power local pilot lights or run-status indicators.
- Engineered for industrial control logic, these contacts boast a minimum switching capacity of 17V at 5mA, ensuring flawless electrical continuity without signal dropping. This high-reliability engineering overcomes the contact oxidation and resistance issues common in lower-grade components, ensuring crisp, accurate telemetry back to solid-state controllers.
- Fully certified to IEC, UL, and CSA standards with a robust 600V insulation rating, this block is built to handle heavy-duty commercial and industrial control environments. The rugged construction mitigates tracking and insulation breakdown, giving facility managers peace of mind regarding compliance, operational safety, and system longevity.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, France, United Kingdom, United States
Depth29 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles, 120 VA 230-240 V AC-15 100000 cycles48 VA 24-24 V AC-15 100000 cycles60 VA 48-48 V AC-15 100000 cycles
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Rated Operational Power In W15 W 48 V DC-13 100000 cycles24 W 24 V DC-13 100000 cycles9 W 60 V DC-13 100000 cycles
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- [Ui] Rated Insulation Voltage
- 300 V UL 508, 300 V CSA C22.2 No 14250 V IEC 60947-1
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0 kg CO2 eq., 0.042975901165365114
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 0.1 kg CO2 eq., 0.11965725573922227
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2207006
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1936
- China Rohs In Scope
- No
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Compatibility Code
- GVAE
- Environmental Characteristic
- normal environment
- Mounting Location
- front side
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- gG fuse 10 AGB2CB06 circuit breaker 10 A maximum
- Returnability
- Yes
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 0.2 kg CO2 eq.
- Pole Contact Comp
- 2 NO
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; FR
- Recyclability Potential In %
- 42
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 24...240 V AC24...60 V DC
- Package Weight(Lbs)
- 18.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Certificate AgencyCB Scheme, CE, UKCA, CCC, cULus, EAC
Carbon Footprint Of The Distribution Phase [A4]0.0057631299125867775, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.0015142136172870977, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0025283999999999997
Local Publishable Date2026-07-07
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Device Short NameGVAE
Mechanical Durability100000 cycles
Pole Contact Composition2 NO
Product Or Component Typeauxiliary contact block
Quantity Per Setset of 10
Software Versionv5.9.4
Tightening Torque1.7-1.7 N.m screw clamp terminals
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Pep CodeENVPEP2207006EN
Pep Verification Date2025-06-17
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; FR
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; FR
Height Nominal11 mm
[Ith] Conventional Free Air Thermal Current2.5 A
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536509065
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2207006
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Product CompatibilityGV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
Reach Free ShvcYes
Toxic Heavy Metal FreeYes
Carbon Footprint0.17243890043446125
Environmental DisclosureENVPEP2207006EN
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP2207006EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
