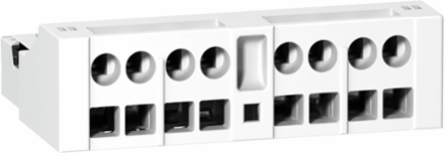

Schneider Electric GVAE203 TeSys Deca Auxiliary Contact Block 2NO, for GV2/GV3, 44.5mm Width
- MPN: GVAE203
- PPN: SCH-GVAE203
CAD
$58.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 2NO instantaneous auxiliary contacts. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on front side of the circuit breaker, connection by spring terminals. Sold in lots of 10 units. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHS/REACh).
Documentation & Downloads
Specifications
Key Specifications
- Product Or Component Type
- auxiliary contact block
- Mounting Location
- front side
- Quantity Per Set
- set of 10
- Device Short Name
- GVAE
RangeTeSys || TeSys Deca
Pole Contact Composition2 NO
Product CompatibilityGV2L || GV2P || GV2RT || GV3P || GV2LE || GV3L || LS1D323 || GV2ME
Complementary
- Minimum Switching Current
- 5 mA
- [Ith] Conventional Free Air Thermal Current
- 2.5 A
- Protection Type
- gG fuse 10 A || GB2CB06 circuit breaker 10 A
- [Ui] Rated Insulation Voltage
- 300 V UL 508 || 300 V CSA C22.2 No 14 || 250 V IEC 60947-1
- Rated Operational Power In Va
- 120 VA 110-120 V AC-15 100000 cycles || 120 VA 230-240 V AC-15 100000 cycles || 48 VA 24-24 V AC-15 100000 cycles || 60 VA 48-48 V AC-15 100000 cycles
- Colour
- dark grey
- Depth
- 31.5 mm
Height13 mm
[Ue] Rated Operational Voltage24...240 V AC || 24...60 V DC
Net Weight0.05 kg
Minimum Switching Voltage17 V
Mechanical Durability100000 cycles
Width44.5 mm
Rated Operational Power In W15 W 48 V DC-13 100000 cycles || 24 W 24 V DC-13 100000 cycles || 9 W 60 V DC-13 100000 cycles
Environment
- Product Certifications
- UKCA
Environmental Characteristicnormal environment
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2207006
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Eu Rohs Directive
- Compliant
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI2207006
