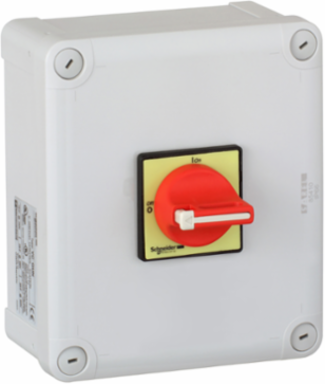

Schneider Electric VC4GUN TeSys Emergency Stop Switch Disconnector 63A NEMA 12 IP65
Schneider Electric VC4GUN TeSys Emergency Stop Switch Disconnector 63A NEMA 12 IP65
- MPN: VC4GUN
- PPN: SCH-VC4GUN
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$292.49/ EA
Description
TeSys enclosed starter with switch disconnector, 3 poles, 63A/600V, for main and emergency stop switching in motor applications up to 40hp@600V. Enclosure fitted with a 3-pole switch body Vario V4, red rotary handle, yellow front plate with O/I marking. Possible attachement of 2 add-on modules to the internal switch body (main pole, neutral pole, earthing module, auxiliary contacts), to be ordered separately. NEMA type 1 and type 12 enclosure, IP65 protection, sealable, padlockable in O-Off position. It conforms to UL/CSA standards, Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Ambient Air Temperature For Operation
- -20-50 °C
- Ip Degree Of Protection
- IP65 IEC 60529
- Protective Treatment
- TC
StandardsUL 508 || CSA C22.2 No 14 || IEC 60947-4-1 || IEC 60204
Nema Degree Of ProtectionNEMA 12
Mechanical Robustnessvibrations 10...150 Hz 1 gn) IEC 60068-2-6 || shocks 11 ms 30 Gn) IEC 60068-2-27
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2211019
- Toxic Heavy Metal Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz
- Intermittent Duty Class
- 30
- Marking
- 0 - 1
- Net Weight
- 0.93 kg
- Making Capacity
- 800 A 400 V AC-21A || 800 A 400 V AC-22A || 800 A 400 V AC-23A
- [Icm] Rated Short-Circuit Making Capacity
- 2.1 kA 400 V at Ipeak
- Environmental Characteristic
- standard environment
- [Ie] Rated Operational Current
- 57 A AC-23A)400 V
- Rated Power In Hp
- 15 hp 240 V, UL || 30 hp 480 V, UL || 40 hp 600 V, UL
- [Ithe] Conventional Enclosed Thermal Current
- 63.0 A IEC 690 V || 63 A UL 600 V
- Tightening Torque
- 4-4 N.m screw clamp terminals
- Breaking Capacity
- 640 A 400 V AC-21A) || 640 A 400 V AC-22A) || 640 A 400 V AC-23A)
- Rated Conditional Short-Circuit Current
- 10 kA 400 V 80 A aM || 10 kA 400 V 80 A gG
Height193 mm
[Ithe] Conventional Enclosed Thermal Current63 A
Base Dimension60 x 60 mm
[Uimp] Rated Impulse Withstand Voltage8 kV
Connections - Terminalsscrew clamp terminals 25-25 mm² solid - with cable end || screw clamp terminals 16-16 mm² flexible
Electrical Durability30000 cycles AC-21 || 30000 cycles DC-1...5
Suitability For Isolationyes
Mechanical Durability30000 cycles
Fire Resistance960 °C IEC 60595-2-1
Width164 mm
Depth132 mm
Rated Operational Power In W30 kW 400 V AC-23) || 22 kW 400 V AC-3)
[Icw] Rated Short-Time Withstand Current960 A 400 V 1 s
Specifications
- Rotary Handle Padlocking
- 1 to 3 padlocks 4-8 mm
- Handle Colour
- red
- Product Name
- TeSys VARIO
- Range
- TeSys
- Poles Description
- 3P
Handle Front Plate Colouryellow
Product Or Component Typeenclosed emergency stop switch disconnector
Performance Levelhigh performance
Control Typerotary handle
Device Short NameVC-GUN
