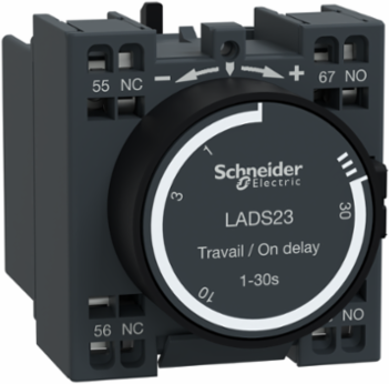

Schneider Electric LADS23 TeSys Deca Time Delay Auxiliary Contact Block 1NO+1NC 1-30s 690V AC
- MPN: LADS23
- PPN: SCH-LADS23
CAD
$261.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
TeSys D time delay auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 1NO+1NC contacts rated up to 10A 690V AC, Off-delay setting range 1-30s, connection by spring terminals. A delay of 40ms is ensured between opening of NC contact and closing of NO contact. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC), Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Product Certifications
- CB || UL || CSA || CCC || EAC || UKCA
- Standards
- GB/T 14048.5 || EN/IEC 60947-5-1
- [Ue] Rated Operational Voltage
- 690 V AC 25...400 Hz
- Product Or Component Type
- time delay auxiliary contact block
- Range
- TeSys || TeSys Deca
- Pole Contact Composition
- 1 NO + 1 NC
- [Ie] Rated Operational Current
- 6 A at 120 V AC-15 || 1.04 A at 690 V AC-15 || 0.55 A at 125 V DC-13 || 0.1 A at 600 V DC-13
- Auxiliary Contacts Operation
- time delay
[Ith] Conventional Free Air Thermal Current10 A (at 60 °C)
Timer Typeon delay
Range CompatibilityTeSys D CAD || TeSys D LC1D || TeSys Deca CAD || TeSys Deca LC1D
Product NameTeSys Deca
Mounting Locationfront
[Ui] Rated Insulation Voltage690 V IEC 60947-5-1 || 600 V UL || 600 V CSA
Time Delay Range1...30 s
Device Applicationstar delta starter
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Minimum Switching Current
- 5 mA
- Protection Type
- gG fuse 10 A
- Irms Rated Making Capacity
- 140 A AC || 250 A DC
- Minimum Switching Voltage
- 17 V
- Colour
- dark grey
- Depth
- 61 mm
Permissible Short-Time Rating100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
Height48 mm
Insulation Resistance> 10 MOhm
Connections - Terminalsspring terminals 2 2.5-2.5 mm²flexible without cable end || spring terminals 2 2.5-2.5 mm²rigid
Mechanical Durability5 Mcycles
Width44 mm
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP110702EN_V01
- Pvc Free
- Yes
- Weee
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
- Circularity Profile
- N/A
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
China Rohs RegulationProduct out of China RoHS scope. Substance declaration for your information
Eu Rohs DirectiveCompliant with Exemptions
Environment
- Ambient Air Temperature For Operation
- -40-70 °C
- Ambient Air Temperature For Storage
- -60-80 °C
- Protective Treatment
- TH IEC 60068
Ip Degree Of ProtectionIP2X IEC 60529
Environmental Characteristicnormal environment
Operating Altitude3000 m
