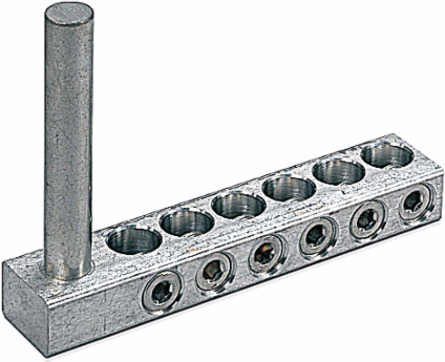

Blackburn ABP 6500 Aluminum Overhead Transformer Eyebolt Multi-Tap Connector 7-5/8 Inch Long, Stud Size 3/4 X 4-1/2
Blackburn ABP 6500 Aluminum Overhead Transformer Eyebolt Multi-Tap Connector 7-5/8 Inch Long, Stud Size 3/4 X 4-1/2
- MPN: ABP 6500
- PPN: T-B-ABP 6500
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$229.96/ EA
Description
Aluminum Overhead Transformer Eyebolt Multi-Tap Set Screw Connectors, length 7-5/8in, stud size 3/4 X 4-1/2, cable range 6-500, outlets 6.
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39121409 Wire connectors
- Brand Name
- Blackburn
- Special Features
- Made from high strength Aluminum alloy to maintain constant bolting pressure on conductors. Screws designed for optimum electrical connection and maximum conductor-contact pressure. Dual rated for use with aluminum and copper conductors. Designed with factory mounted 90 degree angle copper studs for installation in pole-type transformers with secondary eyebolt connections.
- Standard
- ANSI C119.4
- Connection
- Mechanical/Screw
- Number Of Conductors
- 6
- Finish
- Bare
- Insulation
- None
- Environmental Conditions
- All Seasons / Conditions
IGCC4543 Wire connectors
TypeAluminum Overhead Transformer Eyebolt Multi-Tap Set-Screw Connector
ApplicationDesigned with factory-mounted 90 Degree angle copper studs for installation in pole-type transformers with secondary eyebolt connections.
Size7-5/8 inch long, Stud Size 3/4 X 4-1/2
Wire Size#2-500
MaterialAluminum
Voltage RatingNone Since Uninsulated
Temperature Ratingup to 90 Degrees C.
Packaging
- Outer Quantity
- 10
- Weight Uom
- 1.59 lbs. Each
Outer Dimensions (inches)13.375x8.25x7.875
