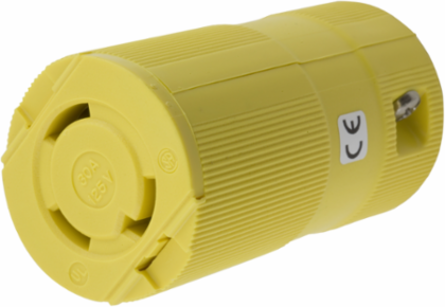

Hubbell Wiring Device-Kellems HBL26CM13V Corrosion Resistant Twist-Lock Connector 30A 125V AC 2-Pole 3-Wire Grounding
Hubbell Wiring Device-Kellems HBL26CM13V Corrosion Resistant Twist-Lock Connector 30A 125V AC 2-Pole 3-Wire Grounding
- MPN: HBL26CM13V
- UPC: 783585808239
- PPN: HBL-HBL26CM13V
- UNSPSC: 39121421
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$55.09/ EA
Description
Locking Devices, Twist-Lock®, Corrosion Resistant Valise® Connector, 30A, 125V AC, 2 Pole, 3 Wire Grounding, NEMA L5-30R, Corrosion resistant, Yellow nylon
Features
- Powerful cord grip prevents conductor slippage and strain on wiring terminals
- Totally insulated impact and crush resistant nylon body
- Unique patented corrosion resistant clamp type terminals provide a superior electrical connection by bundling the conductor strands when clamps are tightened
- Corrosion Resistant
Specifications
- Amperage
- 30 A
- Number of Poles
- 2-Pole
- NEMA Rating
- L5-30R
- Dielectric Strength
- Withstands 2,000 V minimum
- Operating Temperature Range
- -40°C to 75°C
- Dimensions
- 2.26 in x 2.26 in x 3.86 in
- Weight
- 0.25 lb.
- Contacts Material
- Brass, Nickel plated
- Terminal Screws Material
- #8-32 Stainless Steel (Philips, Slotted, Robertson)
- Moisture Resistance
- IP20 Suitability
- Country of Origin
- PR
- Special Features
- Corrosion Resistant
Voltage125 VAC
Number of Wires3-Wire Grounding
Current InterruptingCertified for full rated current
Terminal Wire Size Range#18 AWG to #10 AWG stranded copper
PhaseSingle Phase
Cord Diameter0.590-0.930 in (15.0-23.6 mm)
MaterialNylon, Yellow
Terminal Clamps MaterialSilicon Bronze, Nickel plated
FlammabilityHB or better per UL 94 or CSA 22.2 No. 0.6
ConnectivityPressure Terminal Screws
ApplicationMarine Wiring Devices
EU RoHS IndicatorYes
