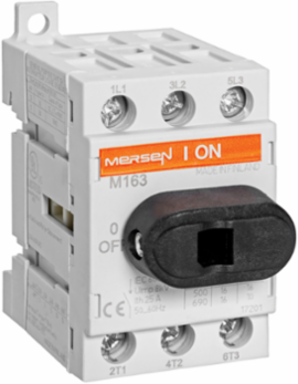

Mersen M163 Compact UL508 Non-Fused Disconnect Switch 600V 16A 3-Pole, 5HP Max Rating
- MPN: M163
- PPN: FER-M163
CAD
$55.38
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The M-series Load Break Switch is the most compact industrial-grade switch on the market. Capable of making or breaking loads up to 600V (UL), it is suitable as a motor disconnect. Extremely compact and robust, these switches have a variety of mounting options including DIN-rail, base, or door-mounting. A wide assortment of handles, shafts and accessories is available to accommodate any installation requirement.
Specifications
Key Specifications
- Rated voltage AC UL
- 600 V
- ROHS Compliant
- Yes
- Short Circuit Current Rating (SCCR)
- Up to 100 kA with fuses
- Short Circuit Rating (Class RK5)
- 5 kA w/60A kA
- Wiring range
- #18-8
- Torque Rating
- 7 lb-in
- Rated Insulation Voltage
- 750 V
- Width
- 1.38 in
- Height
- 1.77 in
Ampere Rating16 A
AC or DCAC
Short Circuit Rating (Class J)10 kA w/60A kA
Number of Poles3-Pole
Connection/Terminal TypeBox
Max Horsepower Rating/FLA3-Phase: 240V 5HP, 480V 10HP, 600V 10HP; 1-Phase 120V 1HP, 240V 2HP
Installation MountingDirect Screw Mount
Length2.13 in
Weight0.24 lb
