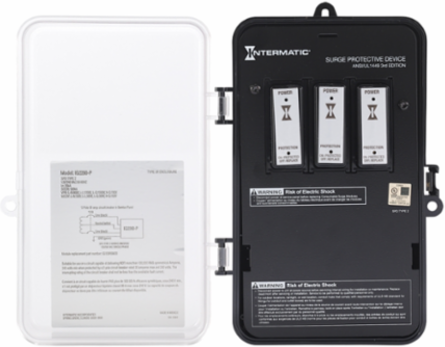

Intermatic IG2280-P Whole House Surge Protective Device, 6-Mode, 120/240 VAC, Type 2

MPN: IG2280-P
UPC: 078275146105
PPN: INT-IG2280-P
UNSPSC: 39121634

$888.97

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Intermatic's SMART GUARD® provides coverage of your customer’s big investment equipment, from appliances and computers to HVAC equipment and TVs. This innovative Surge Protective Device uses IMODULE® with LED lights for quick and easy status indication. A blue light indicates the Surge Protective Device unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449, 5th Edition.

Features

Six Modes of protection.
TPMOV® surge protection technology.
Includes three IMODULES with LED power and protection status lights.
IMODULES replace quickly and easily, eliminating the need to install a new SPD unit.
Tamper-proof IMODULE doors, will only open when IMODULE is being inserted.
Type 3R Rainproof Enclosure for indoor/outdoor applications in plastic.
10-year product warranty.
$25,000 connected equipment warranty for 10 years on appliances and electronics.
UL certified to ANSI/UL 1449 5th edition.

Documentation & Downloads

Specifications

Key Specifications

Input Voltage Rating Range(s)	120/240 VAC, 50/60 Hz
Color	Black
Marketing Description	Intermatic's SMART GUARD® provides coverage of your customer’s big investment equipment, from appliances and computers to HVAC equipment and TVs. This innovative Surge Protective Device uses IMODULE® with LED lights for quick and easy status indication. A blue light indicates the Surge Protective Device unit is ON and a green light indicates surge protection is active. Trusted, state-of-the-art TPMOV® (Thermally Protected Metal Oxide Varistor) surge protection technology eliminates the potentially hazardous failure modes that are commonly associated with standard MOV technology. Type 1 applications include outdoor installations before service entrances and utility meter cabinets. Type 2 applications include installations after service entrances. UL Listed to ANSI/UL 1449, 5th Edition.
