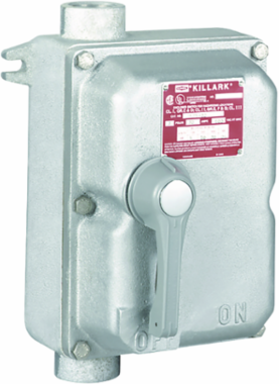

Killark XEDS-30AA Non-Fused Disconnect Switch, 30 Amp Max, 3 Poles, 600 VAC/250 VDC
- MPN: XEDS-30AA
- UPC: 783936898032
- PPN: HBL-XEDS-30AA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
XEDS Series, 30 Amp Max, Non-Fused Disconnect Switch W/ 2 Aux Contacts
Features
- External handle is vault type with standard provisions for locking in "OFF" position with up to three padlocks.
- Provisions for locking in "ON" position available as factory modification (add suffix SU40 to catalog number).
- Enclosure and external handle is cast copper-free aluminum alloy (less than 4/10 of 1%).
- Cover bolts are stainless steel.
- Eaton (Cutler Hammer) Type DS Switches.
- Two cast conduit hubs, one top and one bottom.
- Internal disconnect handle mechanism is a sliding plate mounted to the cover.
- Suitable for indoor applications.
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Depth
- 6.875 in
- Height
- 11.875 in
- Primary Voltage
- 600 VAC/250 VDC
- Width
- 8.75 in
- Frequency Rating
- 60 Hz
- Nema Rating
- 3R, 4, 9(E, F, G)
- Number Of Wires
- 4
- Class Code
- D25
- Freight Class Code
- 06316011
- Image Actual Or Representative
- R
- Sub Class Code
- D25D251
- UL File Number
- E53290
- Series
- XEDS Series
- BOX SIZE
- (in)
- NAICS Code
- 3353137100
Country of OriginUnited States
Hazardous Rating(s)Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
Operating Temperature Celcius Max40 Degree
Weight11 lb.
Enclosure TypeBolted
Mounting TypeWall
Number Of Poles3
TypeNon-Fused Disconnect
Description - InvoiceXEDS-30 W/2 NO/NC AUX CONTACTS
Harmonization Code8536509999
MSDS FlagNo
CSA File NumberLR11714
MaterialAluminum, Copper Free (less than 4/10 of 1%)
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00783936898032
