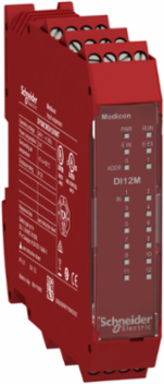

Schneider Electric XPSMCMDI1200MT Safety Input Expansion Module, 12 Digital Inputs, IP20, 24 VDC

  • MPN: XPSMCMDI1200MT
  • PPN: SCH-XPSMCMDI1200MT
  • UNSPSC: 32151705
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $818.72

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Safety Input Expansion Module, 12 Digital Inputs, IP20, 24 VDC

    Features

    • Modular safety controller are designed to provide safety solutions requiring conformity to PLe and SIL3
    • Reduce time-to-market: Offers designed specifically meeting the 6 safety functions required on your machine
    • Modicon MCM offers an extensive range of safety products designed to provide protection for personnel and equipment
    • Modicon MCM safety controller are designed for monitoring multiple safety functions
    • Increase profitability: Safety designed from standalone components to embedded safety network solutions
    • Improve efficiency: One partner for the complete safety chain covering the complete range of safety functions
    • Simplify integration: Wide range of connections for machine controllers

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginItaly, United States

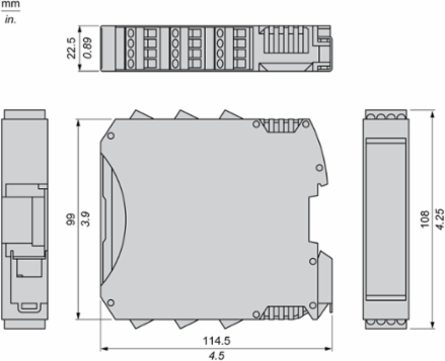

    Depth22.5 mm
    Weight250 g

    Complementary Attributes

    Integrated Connection Typebackplane expansion bus
    Us Rated Supply Voltage24 V - 20...20 % DC
    Uimp Rated Impulse Withstand Voltage4 kV IEC 61800-5-1

    Important Information Attributes

    Cable Cross Section0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Certificate AgencycULus, TÜV, RCM
    Carbon Footprint Of The End Of Life Phase C1 To C40.4 kg CO2 eq., 0.35023679678470043
    Carbon Footprint Of The Manufacturing Phase A1 To A39 kg CO2 eq., 8.562904421037445
    Local Data StatusPublishable
    Return IndicatorN
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Product Kit IdentifierN
    Electrical Connectionscrew terminal
    Function Of Modulesafety mat monitoring discrete input
    Mounting Supportomega 35 mm DIN rail EN 50022
    Overvoltage CategoryII
    Power Dissipation In W3 W
    Product Or Component Typesafe input expansion module
    Range Of ProductPreventa Safety automation
    Service Life20 year(s)
    Software Versionv6.2.5-6
    Total Lifecycle Carbon Footprint136 kg CO2 eq.
    Database Version2024-01
    Height Nominal99 mm
    Nbr. Of Units In Pkg.1
    Warranty In Months18
    Functional Unit Quantity1
    Reference Lifetime In Y1020
    Recyclability Potential In %2
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address12 LEDs yellow IN input status
    Safety Reliability DataDC > 99 %MTTFd < 100 years high, PFHd = 3.24E-9 1/h
    Connections Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
    Carbon Footprint Of The Distribution Phase A40.06999821870609048, 0.1 kg CO2 eq.
    Carbon Footprint Of The Installation Phase A50.19615751385641617, 0.2 kg CO2 eq.
    Carbon Footprint Of The Use Phase B2 B3 B4 B6127 kg CO2 eq., 127.2214464091827
    Local Publishable Date2025-12-01
    Device TypePLC System - PLC Component
    TraceabilityYes
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1847
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Device Short NameXPSMCM
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Number Of Terminal Blocks6
    Power Consumption In W3 W
    Product AvailabilityNon-Stock - Not normally stocked in distribution facility
    Quality LabelsCE
    ReturnabilityNo
    Shock Resistance10 gn 16 ms) 1000 shocks on each axis IEC 61496-1
    Sustainable PackagingNo
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Data Sourceextrapolated product
    Width Nominal114.5 mm
    Customs Code8538908180
    Functional Unit DescriptionOther switchgear and controlgear solutions mentioned in the scope (e.g. fuses TC32, all-or-nothing relays TC94, Measuring relays and protection equipment TC95), apply the general rules of PCR and mention in the accompanying report the functional unit, the reference product characteristics, the reference lifetime and the use scenario which are applied consistently with the relevant IEC technical standards.To extend digital inputs on a safety controller, ensuring reliable monitoring and integration in industrial safety systems, operating at 3W over 10 years at a 100% use rate.
    Functional Unit Unitunit
    Energy Consumption On Product Lifetime In Kwh262.8

    Environment Attributes Main

    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Ambient Air Temperature For Operation-10-55 °C-10-55 °C
    Environmental DisclosureENVPEP2606036_V1
    Ip Degree Of ProtectionIP20 enclosure)
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP2606036_V1
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint136.40074335956737
    Ambient Air Temperature For Storage-20-85 °C-20-85 °C
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %
    Pep Verification Date2026-06-22
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Typesafe input expansion module
    Range Of ProductPreventa Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 10EC001449
    ETIM 9EC001449

    Output Attributes

    Discrete Output TypePNP
    Number Of Outputs8 test line control

    Input Attributes

    Discrete Input TypePNP
    Number Of Inputs12 digital
    Discrete Input Voltage24 V DC
