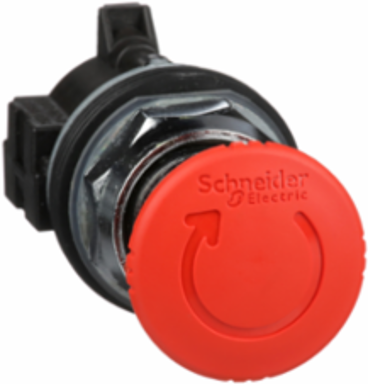

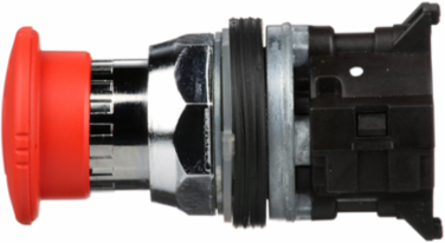

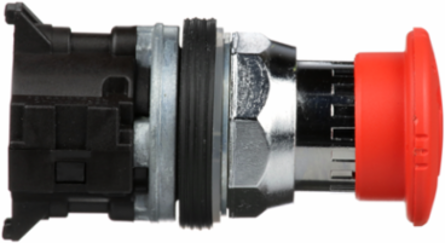

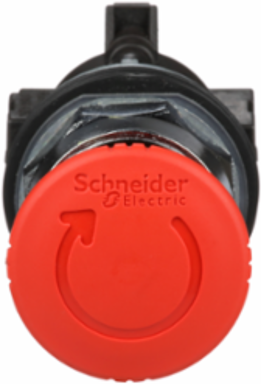

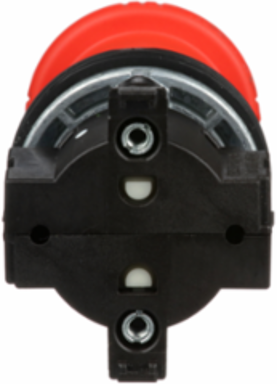

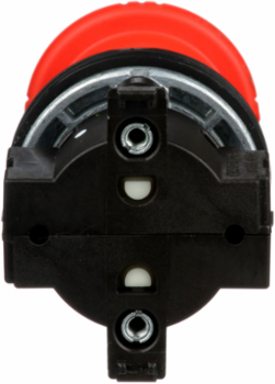

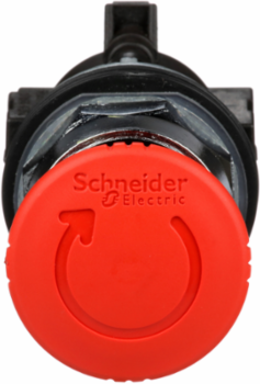

Schneider Electric 9001KR16H2 Emergency Stop Push Button, 30 mm, Red Mushroom 40 mm, IP66

MPN: 9001KR16H2
UPC: 785901623595
PPN: SCH-9001KR16H2
UNSPSC: 39122216

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$298.98

Available to Order from Manufacturer

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This Schneider Electric Harmony 9001K emergency stop / shutdown 30mm mushroom head modular red push-button has 2 positions, operates with a latched turn to release mechanism. It has a chromium-plated metal bezel and has 2 x NO + 2 x NC contacts. It is supplied with contact block and uses screw-clamp terminals. It fits in a 30mm hole. It has a chromium-plated metal bezel. This emergency stop / shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Metal bezel. Ideal for severe environments, especially applications requiring high impact and vibration resistance. Simple modular design facilitates post installation servicing, modification and adaption of machines by non-specialists. Designed to fit in a standard 30mm cutout, ensuring compatibility when installing in pre-existing machinery. Latched emergency stop mechanism for maximum safety of operators. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. High performance, International standards & certifications (Marine ABS certification, IP66, Type 1, 2, 3, 3R, 4, 12 and 13).

Features

Improved security thanks to finger-safe contact blocks and light modules
Robustness to withstand the harshest environments
Easy, secure mounting system
Automatic self-grounding operators without additional wiring
A large metal set of accessories to customize your product
Single screw Contact Block Fastening
Wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product
Highly ergonomic mushroom push-button shape allowing operation with thick gloves or where users have impaired movements

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico, United States

Weight	230 g

Physical Attributes

Cad Overall Depth	116 mm
Cad Overall Width	40 mm

Cad Overall Height	40 mm
Size	30 mm

Complementary Attributes

Icm Rated Short Circuit Making Capacity	12 kA 120 V AC-15, 7200 VA, 0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Rated Breaking Capacity	3 kA 240 V AC-15, 720 VA6 kA 120 V AC-15, 720 VA1.2 kA 600 V AC-15, 720 VA1.5 kA 480 V AC-15, 720 VA0.1 kA 600 V DC-130.27 kA 250 V DC-130.55 kA 125 V DC-13
Uimp Rated Impulse Withstand Voltage	2.5 kV IEC 60947-1

Ie Rated Operational Current	3 A 240 V, AC-15, A600-Q600 NEMA, 0.55 A 125 V, DC-13, A600-Q600 NEMA
Ui Rated Insulation Voltage	250 V 3)IEC 60947-1

Important Information Attributes

Persona Type Ids	BM9, EU, LC, OM, OM8, PB, SC, SI, VR
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Operator Profile	mushroom Ø 40 mm, red mushroom Ø 40 mm, unmarked
Carbon Footprint Of The Distribution Phase A4	0.12441515548389075, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	0.0016973770532174698, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-07-30
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI2503027EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1930
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Bezel Material	metal
Contacts Material	silver alloy contacts
Device Short Name	9001K
Mechanical Durability	5000000 cycles
Operating Position	any position
Overvoltage Category	class II conforming to IEC 61140
Product Or Component Type	emergency stop push-button
Range Of Product	Harmony 9001K
Shape Of Screw Head	cross slotted
Shock Resistance	50 gn IEC 60068-2-27
Sustainable Packaging	Yes
Total Lifecycle Carbon Footprint	2 kg CO2 eq.
Vibration Resistance	7 gn (f= 2-500 Hz) conforming to IEC 60068-2-6
Connections Terminals	screw clamp terminals, 1 x 0.22...2 x 1.5 mm² IEC 60947-1
Data Source	extrapolated product
Nbr. Of Units In Pkg.	1
Ith Conventional Free Air Thermal Current	10 A
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	10

Persona Type Names	Charge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market Segmentation	Commercial, Industrial
Certificate Agency	NEMA, UL 508
Carbon Footprint Of The End Of Life Phase C1 To C4	0.5 kg CO2 eq., 0.5052845714981404
Carbon Footprint Of The Manufacturing Phase A1 To A3	1 kg CO2 eq., 1.2551906588633142
Local Data Status	Publishable
Return Indicator	Y
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	Yes
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Compatibility Code	9001K
Contacts Type And Composition	2 C/O
Head Material	plastic
Mounting Diameter	30 mm
Operator Position Information	2 positions
Product Availability	Non-Stock - Not normally stocked in distribution facility
Protective Treatment	TC
Returnability	Yes
Shape Of Signaling Unit Head	round
Software Version	v6.2.4
Tightening Torque	0.8-0.8 N.m IEC 60947-1
Type Of Operator	turn to releaseturn to release trigger action
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2024-01
Cap/Operator Or Lens Colour	red
Customs Code	8536509035
Short Circuit Protection	10 A cartridge fuse IEC 60947-5-1
Functional Unit Description	This subset can be easily installed into a standard 30mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance with it's clear color when it configuarted with head. It is an impact resistant, dust resistant, water resistant and vibration resistant which making it ideal for operation in harsh environments. Impact and corrosion resistant metal bezel and body ensures product continues to operate even after severe accidents. Product is adhering to standards IEC 60947-5-1, IEC 60947-5-5, UL 60947-5-5
Functional Unit Unit	unit
Recyclability Potential In %	49

Environment Attributes Main

Ambient Air Temperature For Operation	-25-70 °C, -25-70 °C
Ip Degree Of Protection	IP66 IEC 60529, IP65/IP66
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1.8865877628985628
Environmental Disclosure	ENVPEP2503027EN
Packaging Made With Recycled Cardboard	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2025-03-26
Psr Version	PSR-0005-ed3-2023 06 06

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Nema Degree Of Protection	NEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI2503027EN
Eu Rohs Directive	Compliant By Exemption
Packaging Without Single Use Plastic	Yes
Pep Code	ENVPEP2503027EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review
