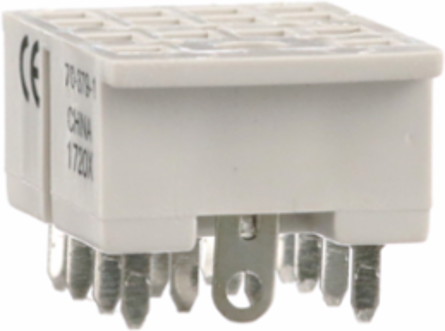

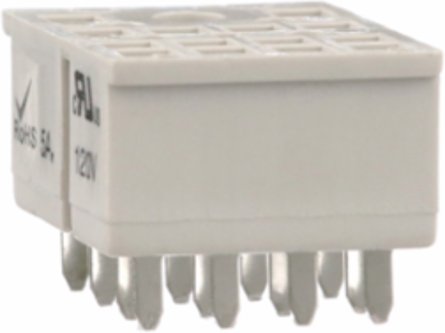

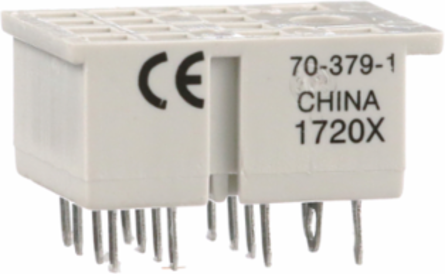

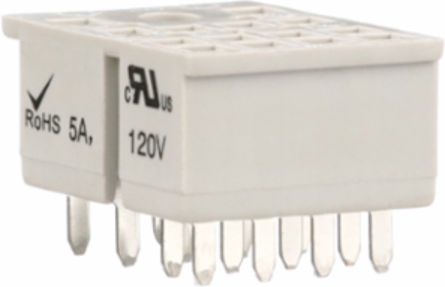

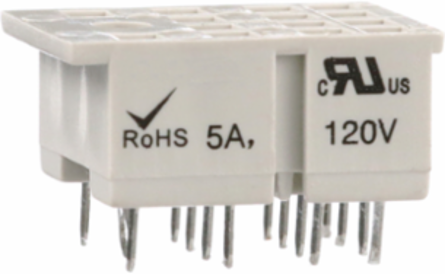

Schneider Electric 70-379-1 Socket, SE Relays, 5A, 14 pins, for printed circuit board, for 782H / 792 relays,

MPN: 70-379-1
PPN: SCH-703791
UNSPSC: 39122335

$4.62

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Legacy general purpose relay series accessory , optional socket for 782H/792 series relays with 4PDT configuration contacts rated 5A at 120V. Printed circuit boards terminals 14 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.

Documentation & Downloads

Specifications

Key Specifications

Width	16.6 mm
Product Compatibility	relay 792XDX \|\| relay 782XDXH
Number Of Terminals	14
Contacts Type And Composition	4 C/O

Weight	5.8 g
Range Of Product	Harmony Electromechanical Relays
Product Or Component Type	socket
Switch Function	4PDT

Complementary

Connections - Terminals	pins for printed circuit board
Fixing Mode	by screws printed circuit boards
Net Weight	5.8 g
Width	16.6 mm

Line Rated Current	5 A
Contact Terminal Arrangement	mixed
[Ue] Rated Operational Voltage	120 V
Depth	25.40 mm

Offer Sustainability

Rohs Exemption Information	Yes
Toxic Heavy Metal Free	Yes
California Proposition 65	WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Weee	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Circularity Profile	N/A

Mercury Free	Yes
Reach Regulation	Free of Substances of Very High Concern above the threshold
Reach Free Of Svhc	Yes
China Rohs Regulation	X
Eu Rohs Directive	Pro-active compliance (Product out of EU RoHS legal scope)
