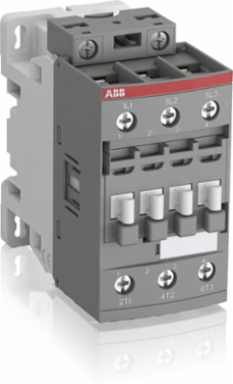

ABB AF26N1-30-00-12 DC Contactor, 690V, 3 Poles, 11kW, 45A General Use
- MPN: AF26N1-30-00-12
- UPC: 804325725071
- PPN: ABB-AF26N1-30-00-12
- UNSPSC: 39121529
CAD
$494.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
The AF26N1-30-00-12 is a 3 pole - 690 V IEC or 600 UL contactor with screw terminals, controlling motors up to 11 kW / 400 V AC (AC-3) or 15 hp / 480 V UL 45 A (AC-1) or 45 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (48-130 V, 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.
Specifications
Dimensions
- Product Net Width
- 45 mm
- Product Net Height
- 86 mm
Product Net Depth / Length86 mm
Product Net Weight0.31 kg
Technical
- Connecting Capacity Control Circuit
- Flexible with Ferrule 1/2x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 1x 0.75 ... 2.5 mm²Flexible with Insulated Ferrule 2x 0.75 ... 1.5 mm²Rigid Solid 1/2x 1 ... 2.5 mm²Rigid Stranded 1/2x 1 ... 2.5 mm²
- Maximum Breaking Capacity
- cos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 440 V 500 Acos phi=0.45 (cos phi=0.35 for Ie > 100 A) at 690 V 200 A
- Maximum Mechanical Switching Frequency
- 3600 cycles per hour
- Mounted Auxiliary Contacts
- 0 NO, 0 NC
- Mounting by Screws (not supplied)
- 2 x M4 screws placed diagonally
- Number of Auxiliary Contacts NC
- 0
- Number of Main Contacts NC
- 0
- Number of Poles
- 3
- Pollution Degree
- 3
- Rated Control Circuit Voltage (Uc)
- 50 Hz 48 ... 130 V60 Hz 48 ... 130 VDC Operation 48 ... 130 V
- Rated Impulse Withstand Voltage (Uimp)
- 6 kV
- Rated Operational Current AC-1 (Ie)
- (690 V) 40 °C 45 A(690 V) 60 °C 40 A(690 V) 70 °C 32 A
- Rated Operational Current AC-3e (Ie)
- (415 V) 60 °C 26 A(440 V) 60 °C 26 A(500 V) 60 °C 23 A(690 V) 60 °C 17 A(380 / 400 V) 60 °C 26 A(220 / 230 / 240 V) 60 °C 26 A
- Rated Operational Power AC-3e (Pe)
- (415 V) 11 kW(440 V) 15 kW(500 V) 15 kW(690 V) 15 kW(380 / 400 V) 11 kW(220 / 230 / 240 V) 6.5 kW
- Rated Short-time Withstand Current Low Voltage (Icw)
- at 40 °C Ambient Temp, in Free Air, from a Cold State 10 s 350 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 15 min 50 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 min 150 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 1 s 700 Aat 40 °C Ambient Temp, in Free Air, from a Cold State 30 s 225 A
- Terminal Type
- Screw Terminals
- Wire Stripping Length
- Control Circuit 10 mmMain Circuit 14 mm
Connecting Capacity Main CircuitFlexible with Ferrule 1/2x 1.5 ... 10 mm²Flexible with Insulated Ferrule 1x 1.5 ... 10 mm²Flexible with Insulated Ferrule 2x 1.5 ... 4 mm²Rigid Solid 1/2x 2.5 ... 4 mm²Rigid Stranded 1/2x 2.5 ... 10 mm²
Maximum Electrical Switching Frequency(AC-1) 600 cycles per hour(AC-2 / AC-4) 150 cycles per hour(AC-3) 1200 cycles per hour
Minimum Mounting DistanceOther Device Same Type, Horizontal 0 mmOther Device Same Type, Vertical 0 mm
Mounting Position1, 1 +/-30°, 2, 3, 4, 5
Mounting on DIN RailTH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
Number of Auxiliary Contacts NO0
Number of Main Contacts NO3
Operate TimeBetween Coil De-energization and NC Contact Closing 13 ... 98 msBetween Coil De-energization and NO Contact Opening 11 ... 95 msBetween Coil Energization and NC Contact Opening 38 ... 90 msBetween Coil Energization and NO Contact Closing 40 ... 95 ms
Power Lossat Rated Operating Conditions AC-1 per Pole 1.8 Wat Rated Operating Conditions AC-3 per Pole 0.6 W
Rated Frequency (f)Control Circuit 50 / 60 HzMain Circuit 50 / 60 Hz
Rated Insulation Voltage (Ui)acc. to IEC 60947-4-1 690 Vacc. to UL/CSA 600 V
Rated Operational Current AC-3 (Ie)(415 V) 60 °C 26 A(440 V) 60 °C 26 A(500 V) 60 °C 23 A(690 V) 60 °C 17 A(380 / 400 V) 60 °C 26 A(220 / 230 / 240 V) 60 °C 26 A
Rated Operational Power AC-3 (Pe)(400 V) 11 kW(415 V) 11 kW(440 V) 15 kW(500 V) 15 kW(690 V) 15 kW(380 / 400 V) 11 kW(220 / 230 / 240 V) 6.5 kW
Rated Operational VoltageMain Circuit 690 V
StandardsIEC/EN 60947-1, IEC/EN 60947-4-1, UL 60947-4-1, CSA C22.2 No. 60947-4-1
Tightening TorqueControl Circuit 1.2 N·mMain Circuit 2.5 N·m
Classifications
- eClass
- V11.0 : 27371003
- Object Classification Code
- Q
ETIM 9EC000066 - Power contactor, AC switching
Environmental
- Ambient Air Temperature
- Close to Contactor Fitted with Thermal O/L Relay -25 ... 60 °CClose to Contactor without Thermal O/L Relay -40 ... 70 °CClose to Contactor for Storage -60 ... +80 °C
- Conventional Free-air Thermal Current (Ith)
- acc. to IEC 60947-4-1, Open Contactors Θ = 40 °C 50 A
- Maximum Operating Altitude Permissible
- Without Derating 3000 m
- Resistance to Vibrations acc. to IEC 60068-2-6
- 5 ... 300 Hz 4 g closed position / 2 g open position
- WEEE Category
- Product Not in WEEE Scope
Climatic WithstandCategory B according to IEC 60947-1 Annex Q
Degree of Protectionacc. to IEC 60529, IEC 60947-1, EN 60529 Coil Terminals IP20acc. to IEC 60529, IEC 60947-1, EN 60529 Main Terminals IP20
Resistance to Shock acc. to IEC 60068-2-27Closed, Shock Direction: B1 25 gOpen, Shock Direction: B1 5 gShock Direction: A 30 gShock Direction: B2 15 gShock Direction: C1 25 gShock Direction: C2 25 g
RoHS Information2CMT2021-006277
Technical UL/CSA
- Connecting Capacity Control Circuit UL/CSA
- Rigid Solid 1/2x 18-14 AWGRigid Stranded 1/2x 18-14 AWG
- Continuous Current Rating NEMA
- 27 A
- General Use Rating UL/CSA
- (600 V AC) 45 A
- Maximum Operating Voltage UL/CSA
- Main Circuit 600 V
- Tightening Torque UL/CSA
- Control Circuit 11 in·lbMain Circuit 22 in·lb
Connecting Capacity Main Circuit UL/CSARigid Solid 1/2x 14-10 AWGRigid Stranded 1/2x 14-8 AWG
Full Load Amps Motor Use(120 V AC) Single Phase 2 A(200 ... 208 V AC) Three Phase 7-1/2 A(220 ... 240 V AC) Three Phase 7-1/2 A(240 V AC) Single Phase 3 A(440 ... 480 V AC) Three Phase 15 A(550 ... 600 V AC) Three Phase 20 A
Horsepower Rating NEMA(115 V AC) Single Phase 2 Hp(200 V AC) Three Phase 7-1/2 Hp(230 V AC) Single Phase 3 Hp(230 V AC) Three Phase 7-1/2 Hp(460 V AC) Three Phase 10 Hp(575 V AC) Three Phase 10 Hp
NEMA Size1
Ordering
- Minimum Order Quantity
- 1 piece
- Product Main Type
- AF26N1
Customs Tariff Number85364900
