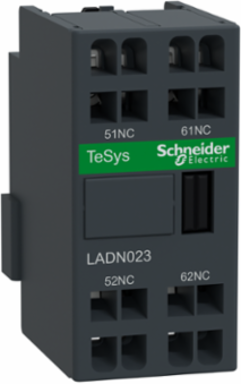

Schneider Electric LADN023 TeSys Deca Auxiliary Contact Block 2NC 10A 690V Front Mounting
- MPN: LADN023
- PPN: SCH-LADN023
CAD
$60.60
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Deca instantaneous auxiliary contact block, for contactors LC1D, LC1F and control relays CAD. It provides 2NC contacts (NC mirror certified) rated up to 10A/690V AC, connection by spring terminals. Clip-on front mounting, it procures high reliability and durability. Multi standards certified (IEC, UL, CSA, CCC, EAC).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia, France
Depth42 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1250 A DC conforming to IEC 60947-5-1
- Minimum Switching Voltage
- 17 V
Minimum Switching Current5 mA
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Range
- TeSys, TeSys Deca
- [Ie] Rated Operational Current
- 6 A at 120 V AC-151.04 A at 690 V AC-15, 0.55 A at 125 V DC-130.1 A at 600 V DC-13
- Connections - Terminals
- spring terminals 2 2.5-2.5 mm²flexible without cable end, spring terminals 2 2.5-2.5 mm²rigid
- Carbon Footprint Of The Distribution Phase [A4]
- 0.030848118386537053, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0038548757097031845, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 3 kg CO2 eq., 3.1606
- Local Publishable Date
- 2026-07-14
- Stocking Flag
- N
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- 1
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Environmental Characteristic
- normal environment
- Mechanical Durability
- 30 Mcycles
- Pole Contact Composition
- 2 NC
- Product Name
- TeSys Deca
- Protection Type
- gG fuse 10 A
- Range Of Product
- TeSys Deca
- Shielding Continuity Terminal
- without
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP1108007EN
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; FR
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 48 mm
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- Permissible Short-time Rating
- 100 A 60 °C 1 s120 A 60 °C 500 ms140 A 60 °C 100 ms
- Package Weight(Lbs)
- 38.000 g
- Warranty (In Months)
- 18
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 3.1606
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 22.321
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 663.02
- Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 606.91
- Customs Code
- 8536509065
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Certificate AgencyCB Scheme, UL, CSA, CCC, EAC, UKCA
[Ui] Rated Insulation Voltage690 V IEC 60947-5-1600 V UL 60947-5-1, 600 V CSA C22.2 No 60947-5-1
Non-overlap Time1.5 ms on de-energisation no overlap between NC and NO contact, 1.5 ms on energisation no overlap between NC and NO contact
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.07028376588158561
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0.2 kg CO2 eq., 0.18987208313736742
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
TraceabilityNo
Use Carbon Footprint3.1606
Weee Product Category5
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1929
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Device Short NameLADN
Insulation Resistance> 10 MOhm> 10 MOhm
Mounting Locationfront
Product AvailabilityStock - Normally stocked in distribution facility
Product Or Component Typeauxiliary contact block
Protective TreatmentTH IEC 60068
ReturnabilityYes
Software Versionv5.9.4
Total Lifecycle Carbon Footprint3 kg CO2 eq.
Pole Contact Comp2 NC
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo add instantaneous auxiliary contact blocks in front face on TeSys k contactors as NO and NC contacts for 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
Recyclability Potential In %39
Width Nominal26 mm
[Ue] Rated Operational Voltage690 V AC 25...400 Hz
Nbr. Of Units In Pkg.1
Take-backNo
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]3.1524
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]606.91
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]81.925
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]56.111
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]56.111
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 3.4554588431151934
- Eu Rohs Directive
- Compliant
- Operating Altitude
- 9842.52 ft (3000 m)
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2025-06-17
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-5-60 °C, -5-60 °C
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP1108007EN
Ip Degree Of ProtectionIP20 conforming to IEC 60529
Packaging Made With Recycled CardboardYes
Reach Free Of SvhcYes
Pep CodeENVPEP1108007EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- auxiliary contact block
Range Of ProductTeSys Deca
ETIM
- ETIM 8
- EC000041
ETIM 9EC000041
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
