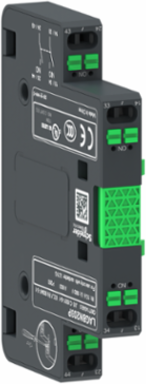

Schneider Electric LAG8N203P Auxiliary Contact Block, 2NO, Side Mounting, IP20 Protection
- MPN: LAG8N203P
- PPN: SCH-LAG8N203P
CAD
$75.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
These accessories are auxiliary contact block 2NO for TeSys Giga contactors. Highly reliable and suitable for 17V 1mA to address more challenging specific control applications. It is designed to side mounting by spring terminals R1/L1. It provides IP20 protection conforming to IEC 60529. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude. Green Premium compliant (RoHs/Reach).
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- TeSys G
- Product Or Component Type
- auxiliary contact block
- Range
- TeSys
- Auxiliary Contacts Operation
- instantaneous
Range CompatibilityTeSys G LC1G
Connections - Terminalsscrew clamp terminals 0.75-2.5 mm²solid stranded without cable end || screw clamp terminals 0.75-2.5 mm²flexible with cable end
Pole Contact Composition2 NO
Device Short NameLAG8N
Complementary
- Non-Overlap Time
- 1.5 ms on de-energisation no overlap between NC and NO contact || 1.5 ms on energisation no overlap between NC and NO contact
- Minimum Switching Current
- 1 mA
- [Ith] Conventional Free Air Thermal Current
- 10 A (at 60 °C)
- Protection Type
- gG fuse 10 A
- Irms Rated Making Capacity
- 140 A AC conforming to IEC 60947-5-1 || 250 A DC conforming to IEC 60947-5-1
- Mounting Location
- side
- Minimum Switching Voltage
- 17 V
- Width
- 15.4 mm
Permissible Short-Time Rating100 A 60 °C 1 s || 120 A 60 °C 500 ms || 140 A 60 °C 100 ms
Height55.8 mm
[Ue] Rated Operational Voltage500 V AC 25...400 Hz
Insulation Resistance> 10 MOhm
Net Weight0.05 kg
[Ui] Rated Insulation Voltage500 V IEC 60947-5-1 || 500 V CSA || 500 V UL
Mechanical Durability8 Mcycles
Depth84.8 mm
Environment
- Product Certifications
- CB Scheme || CCC || cULus || CE || UKCA || EU-RO-MR by DNV-GL || EAC
- Standards
- EN/IEC 60947-5-1 || UL 60947-5-1 || CSA C22.2 No 60947-5-1 || GB 14048.5
- Ambient Air Temperature For Storage
- -60-80 °C
- Operating Altitude
- 3000 m
Ambient Air Temperature For Operation-25-60 °C
Ip Degree Of ProtectionIP20 IEC 60529
Protective TreatmentTH
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2105013
- Pvc Free
- Yes
- China Rohs Regulation
- X
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationReference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2105013
Halogen Content PerformanceHalogen free plastic parts product
