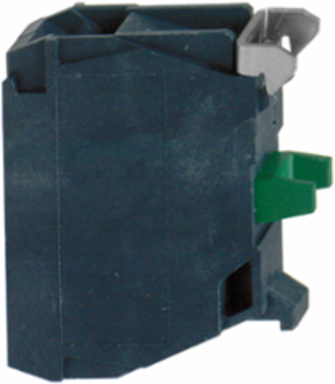

Schneider Electric GS1AM110 TeSys GS Auxiliary Contact Block, 1 NO, Early Break, Front Mounting
- MPN: GS1AM110
- PPN: SCH-GS1AM110
CAD
$39.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
TeSys GS instantaneous auxiliary contact block for all 3-pole and 4-pole 50-1250A IEC and 30-800A UL fuse switch-disconnectors GS2D, GS2E, GS2F, GS2G, GS2J, GS2K, GS2L, GS2M, GS2N, GS2P, GS2Q, GS2S, GS2T, GS2V. It provides 1NO early break contact rated up to 3A/24V DC-13 and 3A/230V AC-15, for I/O and Test position signaling. Front mounting and connection by screw terminals. Multi standards certified (IEC, UL), it conforms to RoHS/REACh regulation.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- TeSys
- Range Compatibility
- TeSys TeSys GS fuse-switch disconnector || FuPact FuPacT GS fuse-switch disconnector
- Contact Application
- O, I and test position signalling
- [Ie] Rated Operational Current
- 6 A 120 V AC-15 || 3 A 240 V AC-15 || 1.8 A 400 V AC-15 || 1.5 A 480 V AC-15 || 2.8 A 24 V DC-13 || 1.4 A 48 V DC-13 || 0.55 A 125 V DC-13 || 0.27 A 250 V DC-13 || 0.15 A 400 V DC-13
- Device Short Name
- GS1AM
[Ith] Conventional Free Air Thermal Current10 A (at 40 °C)
Product Or Component Typeauxiliary contact
Contacts Type And Composition1 NO
Contact Operationearly-break
Complementary
- Type Of Operating Handle
- external frontal || external right side || external left side
- Mounting Location
- front face
- Fuse Type
- NFC || DIN || BS || CC || J
- [In] Rated Current
- 30 A || 32 A || 50 A || 60 A || 63 A || 100 A || 125 A || 160 A || 200 A || 250 A || 315 A || 400 A || 600 A || 630 A || 800 A || 1250 A
Net Weight0.015 kg
Electrical Durability1 Mcycles AC-15
Mechanical Durability5 Mcycles
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2003007EN
- Toxic Heavy Metal Free
- Yes
- Reach Free Of Svhc
- Yes
- Circularity Profile
- ENVEOLI2003007EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Contractual warranty
- Warranty
- 18 months
