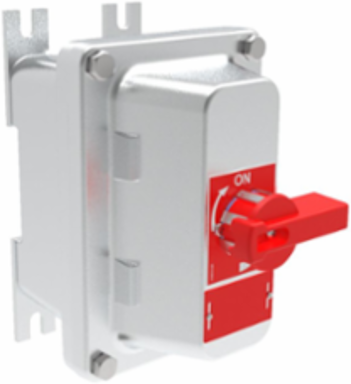

Killark B7NFD13A Aluminum Non-Fused Disconnect Enclosure 30A 3Phase 600V 1 Inch NPT
Killark B7NFD13A Aluminum Non-Fused Disconnect Enclosure 30A 3Phase 600V 1 Inch NPT
- MPN: B7NFD13A
- UPC: 783936009759
- PPN: HBL-B7NFD13A
- UNSPSC: 39122205
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2297.35/ EA
Description
B7NFD Series - Aluminum Feed-Thru Compact Non-Fusible Disconnect Enclosure with ABB Switch - Conduit Hubsize 1 In NPT - 30 Amps/3 Phase/600 Volts
Features
- Compact size enclosures provide application flexibility with cost savings over industry standard sizes.
- Few cover bolts reduces installation and maintenance time.
- Gasketed flange with O-ring located inside bolt circule to seal out moisture.
- Rotary handle style operating mechanism with lockout provision as standard.
- Removable ductile mounting lugs adjust to irregular mounting surfaces.
- Bodies have top and bottom drilled and taped conduit entrances for power connections, with custom openings available.
- ABB UL98 certified switch supplied for 600VAC, 30, 60 & 100 Amp unit available.
- ABB UL508 certified switch supplied for 600VAC, 16, 32, 40, 63 & 80 Amp unit available.
- Enclosures - Copper-free cast aluminum (less than 4/10 of 1% copper content).
- Cover bolts 316 Stainless Steel
- Silicone O-ring gasket.
- Gray powder polyester painted exterior, electrostatically applied.
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
Specifications
Specifications
- Enclosure
- Bolted
- NEMA Rating
- 3, 4, 4X, 7(B, C, D), 9(E, F, G)
- Special Features
- Suitable for indoor/outdoor use, primarily to provide a degree of protection against winblown dust, rain, spashing water, hose directed water, damage from external ice formation and corrosion.
- Country of Origin
- Finland
- Hazardous Rating(s)
- Class I, Divisions 1 & 2, Groups B, C, D;Class I, Zones 1 & 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups E, F, G;Class III, Divisions 1 & 2
- Operating Temperature Celcius Max
- 40 Degree
- Weight
- 11 lb.
- Engineering Drawing 1 Display Text
- B7NFD1 Engineering Drawing
- Actuator
- Rotary Handle
- Application
- The PRISM B7 Series of non-fused disconnect switches are used: in locations made hazardous due to the presence of flammable gasses or vapors or ignitable dusts, fibers, and flyings;outdoors or indoors in damp, wet, and dirty locations;in areas where frequent washdowns, heavy rain, or water spray routinely occurs.
- Frequency Rating
- 60 Hz
- Nema Rating
- 3, 4, 4X, 7(B, C, D), 9(E, F, G)
- Number Of Wires
- 4
- Class Code
- D25
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11714
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- Base Unit of Measure
- EA
- Master Pack Description
- Each
MountingWall
Number of Poles3
ARRA CompliantContact Manufacturer
Depth6.3125 in
Height8.06 in
Primary Voltage600 VAC
Width5.75 in
Action3P
Amperage Rating30 A
Enclosure TypeBolted
Mounting TypeWall
Number Of Poles3
TypeNon-Fused Disconnect
Description - InvoiceNONFUSED DISC 30A 3P 600V
Harmonization Code8536509901
Lead Time15 wk
Order Multiple1 EA
Sub Class CodeD25D251
Gross Weight with Packaging12
SeriesB7NFD Series
Carton - SCC-14 Next Lower Level Sub Pack00783936009759
Certifications
- EU RoHS Indicator
- Contact Manufacturer
