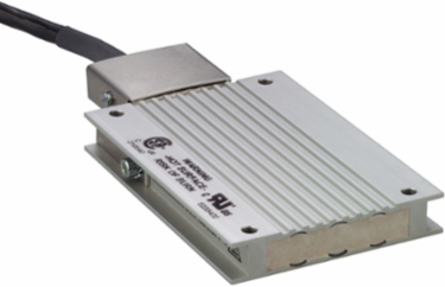

Schneider Electric VW3A7601R07 Braking Resistor 10 Ohm 400 W 0.75 Inch IP65
- MPN: VW3A7601R07
- PPN: SCH-VW3A7601R07
CAD
$508.29
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Engineered for optimal performance in demanding applications, the braking resistor from Schneider Electric features a robust 10 Ohm resistance and a power rating of 400 W. This component is designed to effectively dissipate excess energy, enhancing the braking capabilities of various electric drive systems. With an IP65 rating, it provides excellent protection against dust and water, making it suitable for a wide range of environments. Its compact 0.75-inch design ensures easy integration into existing systems, ensuring reliability and efficiency in operation.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Brazil, Czechia, Germany, France |
|---|
Physical Attributes
| Cable Length | 0.75 m |
|---|
Important Information Attributes
| Energy Peak | 7300 J 400 V, 7300 J 480 V13300 J 230 V18800 J 115 V |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Weee Applicability | Component |
| Weee Exclusion Rationale | Component not in scope – non independent function |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Product Kit Identifier | N |
| Ohmic Value | 10 Ohm |
| Product Or Component Type | braking resistor |
| Returnability | Yes |
| Accessory / Separate Part Category | protection accessories |
| Package Weight(Lbs) | 1.438 kg |
| Warranty (In Months) | 18 |
| Range Of Product | Lexium, Altivar |
|---|---|
| Local Publishable Date | 2026-01-12 |
| Stocking Flag | Y |
| Device Type | Variable speed drive - VSD option & accessory |
| Traceability | No |
| Weee Scope | Out |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 2017 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Continuous Power | 400 W |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Protection Type | thermal protection via the servo drive |
| Sustainable Packaging | No |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8533390080 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -25-85 °C, -25-85 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Ambient Air Temperature For Operation | 0-50 °C |
| Ip Degree Of Protection | IP65 |
| Packaging Without Single Use Plastic | No |
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
General Attributes
| Range Of Product | Lexium, Altivar |
|---|
| Product Or Component Type | braking resistor |
|---|
ETIM
| ETIM 8 | EC002025 |
|---|
| ETIM 9 | EC002025 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
