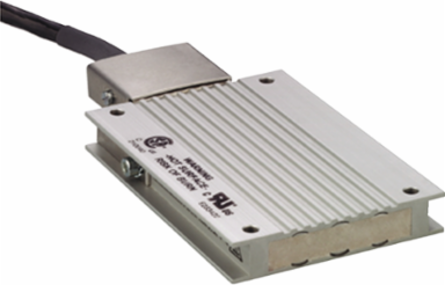

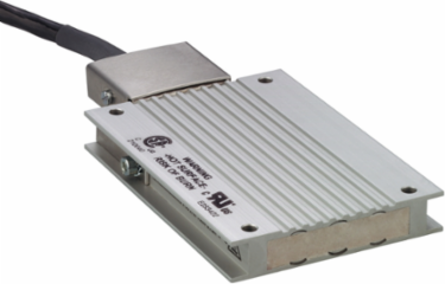

Schneider Electric VW3A7607R20 braking resistor - 72 ohm - 400 W - cable 2 m - IP65
- MPN: VW3A7607R20
- PPN: SCH-VW3A7607R20
CAD
$575.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It dissipates the braking energy, and enables maximum transient braking torque. It has anohmic value of 72Ohms and a cable lenght of 2m. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. Its protection index is IP65. The operating temperature around the unit can be between 0degrecentigrade and plus 50degrecentigrade. It weighs 1.470kg. The external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. It is compliant with Low Voltage Directive 2014/35/EU and EMC Directive 2014/30/EU. This external braking resistor is compatible with Easy Lexium 16 servo drives. It is sold by one piece. Easy Lexium 16 servo drive and BCH16 servo motor combinations are specially designed for easy integration & commissioning in your machine. Easy Lexium 16 servo drive and BCH16 servo motor combinations provide the right level of performance for the majority of simple motion control machines.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Czechia
Physical Attributes
- Cable Length
- 2 m
Important Information Attributes
- Persona Type Ids
- EU, OM
- Range Of Product
- Altivar, Lexium
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2017
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Advanced
- Market Segmentation
- Industrial
- Continuous Power
- 400 W
- Ohmic Value
- 72 Ohm
- Product Or Component Type
- braking resistor
- Returnability
- Yes
- Accessory / Separate Part Category
- protection accessories
- Package Weight(Lbs)
- 1.586 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdADVANCED
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Energy Peak15500 J 480 V16200 J 400 V24700 J 230 V36600 J 115 V
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via the servo drive
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8504409550
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C
- Take Back
- No
- China Rohs Regulation
- X
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Product Compatibilitymotion servo drive LXM16D 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Ambient Air Temperature For Operation0-50 °C
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticNo
General Attributes
- Range Of Product
- Altivar, Lexium
Product Or Component Typebraking resistor
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
