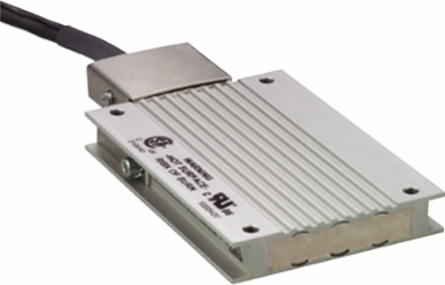

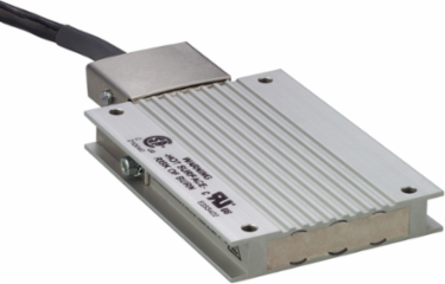

Schneider Electric VW3A7604R20 braking resistor - 27 ohm - 400 W - cable 2 m - IP65
- MPN: VW3A7604R20
- PPN: SCH-VW3A7604R20
CAD
$575.86
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It has an Ohmic value of 27Ohms. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. In this case, the internal braking resistor must be deactivated Its protection index is IP65. It is equipped with a 2m connection cable. It weighs 1.47kg.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Czechia, Germany, France
Physical Attributes
- Cable Length
- 2 m
Important Information Attributes
- Range Of Product
- Lexium, Altivar
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Device Type
- Variable speed drive - VSD option & accessory
- Traceability
- No
- Weee Scope
- Out
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2010
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Continuous Power
- 400 W
- Ohmic Value
- 27 Ohm
- Product Or Component Type
- braking resistor
- Returnability
- No
- Accessory / Separate Part Category
- protection accessories
- Package Weight(Lbs)
- 1.614 kg
- Warranty (In Months)
- 18
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Weee ApplicabilityComponent
Weee Exclusion RationaleComponent not in scope – non independent function
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label5
Without Single Use PlasticNo
Product Kit IdentifierN
Energy Peak10500 J 480 V11400 J 400 V18100 J 230 V25500 J 115 V
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Protection Typethermal protection via the servo drive
Sustainable PackagingNo
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8533290000
Environment Attributes Main
- Ambient Air Temperature For Storage
- -25-85 °C, -25-85 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
Product Compatibilitymotion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
Reach Free ShvcYes
China Rohs RegulationX
Ambient Air Temperature For Operation0-50 °C
Ip Degree Of ProtectionIP65
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
General Attributes
- Range Of Product
- Lexium, Altivar
Product Or Component Typebraking resistor
ETIM
- ETIM 8
- EC002025
ETIM 9EC002025
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
