Braking Resistor 72 Ohm 200 W 0.75 Inch IP65
Schneider Electric

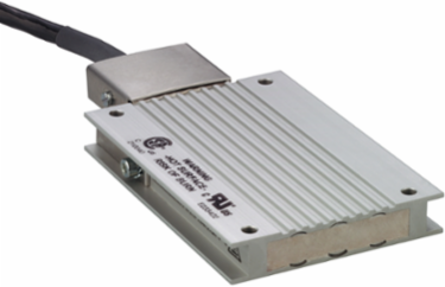

Schneider Electric VW3A7606R07 Braking Resistor 72 Ohm 200 W 0.75 Inch IP65

  • MPN: VW3A7606R07
  • PPN: SCH-VW3A7606R07
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $380.74

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    The Schneider Electric VW3A7606R07 Braking Resistor is engineered to provide efficient energy dissipation in motion control applications, featuring a robust resistance of 72 Ohms and a power rating of 200 Watts. This component is designed to enhance the reliability and performance of automation and control systems, ensuring smooth operation by safely managing excess energy. With a compact size of just 0.75 inches and an IP65 rating, it delivers reliable protection against dust and water, making it suitable for various industrial environments. Its integration can lead to improved system efficiency and safety, which are paramount in high-performance applications.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Czechia, Germany, France

    Physical Attributes

    Cable Length
    0.75 m

    Important Information Attributes

    Range Of Product
    Lexium, Altivar
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2017
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Average Power Available
    50 W 50 °C
    Energy Peak
    6000 J 480 V6600 J 400 V9600 J 230 V14600 J 115 V
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Protection Type
    thermal protection via the servo drive
    Sustainable Packaging
    No
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8533390080
    Local Data StatusPublishable
    Return IndicatorN
    Stock Policy2
    ServiceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Continuous Power200 W
    Ohmic Value72 Ohm
    Product Or Component Typebraking resistor
    ReturnabilityNo
    Accessory / Separate Part Categoryprotection accessories
    Package Weight(Lbs)918.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-85 °C, -25-85 °C
    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Eu Rohs Directive
    Compliant
    Packaging Made With Recycled Cardboard
    No
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Product CompatibilityATV32HU30N4, ATV32HU40N4, variable speed drive ATV320 3 kW, 380...500 V, three phase, variable speed drive ATV320 4 kW, 380...500 V, three phase, variable speed drive ATV320 4 kW, 525...600 V, three phase, motion servo drive LXM16D 0.1 kW, 200...230 V, single phase, motion servo drive LXM16D 0.2 kW, 200...230 V, single phase, motion servo drive LXM16D 0.4 kW, 200...230 V, single phase, motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Ambient Air Temperature For Operation0-50 °C
    Ip Degree Of ProtectionIP65
    Packaging Without Single Use PlasticNo

    General Attributes

    Range Of Product
    Lexium, Altivar
    Product Or Component Typebraking resistor

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
