Braking Resistor 27 Ohm 400 W with 0.75 Inch Cable IP65
Schneider Electric

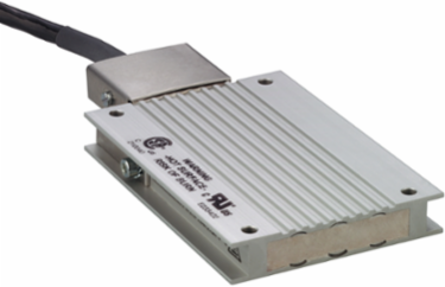

Schneider Electric VW3A7604R07 Braking Resistor 27 Ohm 400 W with 0.75 Inch Cable IP65

  • MPN: VW3A7604R07
  • PPN: SCH-VW3A7604R07
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $508.29

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This braking resistor is an option for servo drives of Lexium range and variable speed drives of Altivar range when used with synchronous motors. It has an Ohmic value of 27Ohms. This external braking resistor is required to dissipate the excess braking energy when the servo motor has to be braked frequently. In this case, the internal braking resistor must be deactivated Its protection index is IP65. It is equipped with a 0.75m connection cable. It weighs 1.42kg.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Czechia, Germany, United States

    Physical Attributes

    Cable Length
    0.75 m

    Important Information Attributes

    Range Of Product
    Altivar, Lexium
    Local Publishable Date
    2026-01-12
    Stocking Flag
    Y
    Device Type
    Variable speed drive - VSD option & accessory
    Traceability
    No
    Weee Scope
    Out
    Scope Perimeter
    At least in Europe
    Reach Full Compliance Status Id
    NOT_CONTAINING_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    2010
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    No
    Product Contributes To Saved And Avoided Emissions
    No
    Average Power Available
    100 W 50 °C
    Energy Peak
    10500 J 480 V11400 J 400 V18100 J 230 V25500 J 115 V
    Product Availability
    Non-Stock - Not normally stocked in distribution facility
    Protection Type
    thermal protection via the servo drive
    Sustainable Packaging
    No
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8533290000
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Weee ApplicabilityComponent
    Weee Exclusion RationaleComponent not in scope – non independent function
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant By Exemption
    Rohs Eur Full Compliance StatusCompliant By Exemption
    China Rohs Label5
    Without Single Use PlasticNo
    Product Kit IdentifierN
    Continuous Power400 W
    Ohmic Value27 Ohm
    Product Or Component Typebraking resistor
    ReturnabilityYes
    Accessory / Separate Part Categoryprotection accessories
    Package Weight(Lbs)1.432 kg
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Storage
    -25-85 °C, -25-85 °C
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    No
    Reach Free Of Svhc
    Yes
    Product Compatibilityvariable speed drive ATV320 7.5 kW, 525...600 V, three phase, ATV32HU55N4, ATV32HU75N4, variable speed drive ATV320 5.5 kW, 380...500 V, three phase, variable speed drive ATV320 7.5 kW, 380...500 V, three phase, variable speed drive ATV320 5.5 kW, 525...600 V, three phase, motion servo drive LXM16D 0.75 kW, 200...230 V, single phase, motion servo drive LXM16D 1 kW, 200...230 V, single phase, motion servo drive LXM16D 1.5 kW, 200...230 V, single phase
    Reach Free ShvcYes
    China Rohs RegulationX
    Ambient Air Temperature For Operation0-50 °C
    Ip Degree Of ProtectionIP65
    Packaging Without Single Use PlasticNo
    Reach RegulationFree of Substances of Very High Concern above the threshold

    General Attributes

    Range Of Product
    Altivar, Lexium
    Product Or Component Typebraking resistor

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
